LM185-1.2-N - Micropower Voltage Reference Diode

Datasheet Summary

Description

The LM185-1.2-N/LM285-1.2-N/LM385-1.2-N are micropower 2-terminal band-gap voltage regulator diodes.

Operating over a 10μA to 20mA current range, they feature exceptionally low dynamic impedance and good temperature stability.

On-chip trimming is used to provide tight voltage tolerance.

Features

  • 1.
  • 2 ±1% and 2% Initial Tolerance.
  • Operating Current of 10μA to 20mA.
  • 1Ω Dynamic Impedance.
  • Low Temperature Coefficient.
  • Low Voltage Reference.
  • 1.235V.
  • 2.5V Device and Adjustable Device Also Available.
  • LM185-2.5 Series and LM185 Series, respectively.

📥 Download Datasheet

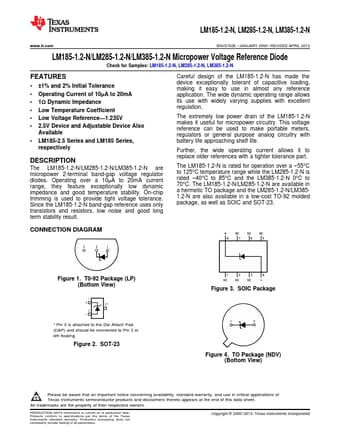

Datasheet preview – LM185-1.2-N
