LM185-2.5-N - Micropower Voltage Reference Diode

Datasheet Summary

Description

The LM185-2.5-N/LM285-2.5-N/LM385-2.5-N are micropower 2-terminal band-gap voltage regulator diodes.

Operating over a 20 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability.

On-chip trimming is used to provide tight voltage tolerance.

Features

  • 1.
  • 2 ±20 mV (±0.8%) max. Initial Tolerance (A Grade).
  • Operating Current of 20 μA to 20 mA.
  • 0.6Ω Dynamic Impedance (A Grade).
  • Low Temperature Coefficient.
  • Low Voltage Reference.
  • 2.5V.
  • 1.2V Device and Adjustable Device Also Available.
  • LM185-1.2 Series and LM185 Series, respectively.

📥 Download Datasheet

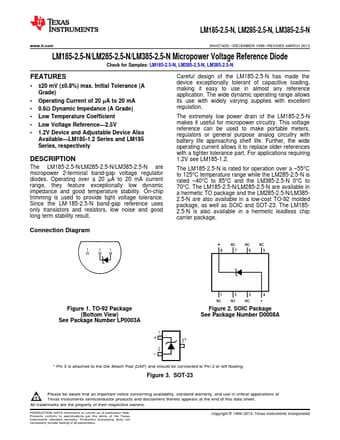

Datasheet preview – LM185-2.5-N

Datasheet Details

Part number LM185-2.5-N
Manufacturer Texas Instruments
File Size 1.67 MB
Description Micropower Voltage Reference Diode
Datasheet download datasheet LM185-2.5-N Datasheet
Additional preview pages of the LM185-2.5-N datasheet.

📁 Similar Datasheet

  • LM185-2.5 - Micropower Voltage Reference Diode (National Semiconductor)
  • LM185-2.5 - Micropower Voltage Reference (Linear Technology)
  • LM185-1.2 - Micropower Voltage Reference Diode (National Semiconductor)
  • LM185-1.2 - Micropower Voltage Reference (Linear)
  • LM185-12 - Micropower Voltage Reference Diode (National Semiconductor)
  • LM185 - Adjustable Micropower Voltage References (National Semiconductor)
  • LM1851 - Ground Fault Interrupter (National Semiconductor)
  • LM1851 - GROUND FAULT INTERRUPTER (UTC)
  • LM185TA-TE1 - TFT-LCD (PANDA)
  • LM185TT1A - TFT-LCD OPEN CELL (PANDA)
Other Datasheets by Texas Instruments
  • LM185-2.5QML - Micropower Voltage Reference Diode
  • LM185-1.2-N - Micropower Voltage Reference Diode
  • LM185-1.2QML - Micropower Voltage Reference Diode
  • LM185-ADJ - Adjustable Micropower Voltage References
  • LM185QML - Adjustable Micropower Voltage References
  • LM1815 - Adaptive Variable Reluctance Sensor Amplifier
  • LM1875 - 20W Audio Power Amplifier
  • LM1875T - 20W Audio Power Amplifier

Full PDF Text Transcription

Click to expand full text
LM185-2.5-N, LM285-2.5-N, LM385-2.5-N www.ti.com SNVS743D – DECEMBER 1999 – REVISED MARCH 2013 LM185-2.5-N/LM285-2.5-N/LM385-2.5-N Micropower Voltage Reference Diode Check for Samples: LM185-2.5-N, LM285-2.5-N, LM385-2.5-N FEATURES 1 •2 ±20 mV (±0.8%) max. Initial Tolerance (A Grade) • Operating Current of 20 μA to 20 mA • 0.6Ω Dynamic Impedance (A Grade) • Low Temperature Coefficient • Low Voltage Reference—2.5V • 1.2V Device and Adjustable Device Also Available—LM185-1.2 Series and LM185 Series, respectively DESCRIPTION The LM185-2.5-N/LM285-2.5-N/LM385-2.5-N are micropower 2-terminal band-gap voltage regulator diodes. Operating over a 20 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability.
