LM185-2.5 - Micropower Voltage Reference Diode

Datasheet Summary

Description

The LM185-2.5/LM285-2.5/LM385-2.5 are micropower 2-terminal band-gap voltage regulator diodes.

Operating over a 20 µA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability.

On-chip trimming is used to provide tight voltage tolerance.

📥 Download Datasheet

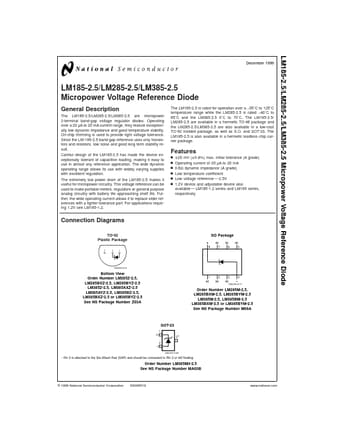

Datasheet preview – LM185-2.5
