LMV7219 Datasheet, Comparator, National Semiconductor

LMV7219 Features

  • Comparator (VS = 5V, TA = 25˚C, Typical values unless specified) n Propagation delay 7ns n Low supply current 1.1mA n Input common mode voltage range extends 200mv below ground n Ideal for 2.7V an

PDF File Details

Part number:

LMV7219

Manufacturer:

National Semiconductor

File Size:

282.22kb

Download:

📄 Datasheet

Description:

7 nsec / 2.7v to 5v comparator. The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7V to 5V with

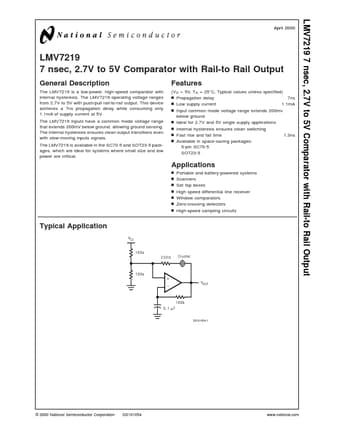

Datasheet Preview: LMV7219 📥 Download PDF (282.22kb)
Page 2 of LMV7219 Page 3 of LMV7219

LMV7219 Application

  • Applications n Internal hysteresis ensures clean switching n Fast rise and fall time 1.3ns n Available in space-saving packages: 5-pin SC70-5 SOT23-
