LMX9402

Frequency Synthesizer Module

National Semiconductor

LMX9402 Features

* n Low phase noise tunable local oscillator n Low current consumption n LMX2330A 2.5 GHz PLLatinum™ in module Applications n DCS wireless cellular systems n Fixed wireless communications Functional Block Diagram DS200075-1 Ordering Information Package CBGA CBGA CBGA CBGA Temp. Range -10˚C to +85˚

LMX9402 General Description

The Frequency Synthesizer Module is a Low Temperature Co-fired Ceramic (LTCC) RF module consisting of a high performance frequency synthesizer, loop filter, and voltage controlled oscillator (VCO). The frequency synthesizer is fabricated using National’s ABiC BiCMOS process (fT = 14 GHz). The loop f.

LMX9402 Datasheet (208.05 KB)

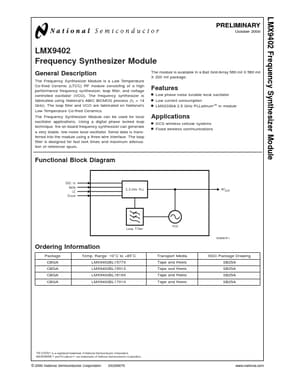

LMX9402 Datasheet Preview — Preview of LMX9402 PDF

Datasheet Details

Part number:

LMX9402

Manufacturer:

National Semiconductor

File Size:

208.05 KB

Description:

Frequency synthesizer module.
