LMX9820A Bluetooth Serial Port Module

LMX9820A Description

www.DataSheet4U.com APRIL 2005 Revision 1.0 LMX9820A Bluetooth Serial Port Module LMX9820A Bluetooth® Serial Port Module 1.0 General .
The National Semiconductor LMX9820A Bluetooth Serial Port module is a highly integrated radio, baseband controller, and memory device implemented on a.

LMX9820A Features

* a small form factor (10.1 x 14.1 x 2.0 mm) design, which solves many of the challenges associated with compact system integration. Moreover, the LMX9820A is pre-qualified as a Bluetooth Integrated Component. Conformance testing through the Bluetooth qualification program enables a fast time to marke

LMX9820A Applications

* Personal Digital Assistants
* POS Terminals
* Data Logging Systems
* Audio Gateway applications 2.0 Functional Block Diagram LINK MGMNT PROCESSOR (LMP) FIRMWARE (INCLUDES PROFILES AND COMMAND INTERFACE) UART UART_RX UART_TX UART_RTS# UART_CTS# IOVCC TX_SWITCH_P ENV0 AUX ANTEN

📥 Download Datasheet

Preview of LMX9820A PDF

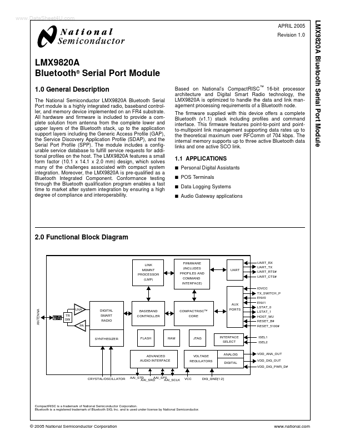

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMX9820A
Manufacturer
National Semiconductor
File Size
594.54 KB
Datasheet
LMX9820A_NationalSemiconductor.pdf
Description
Bluetooth Serial Port Module
