MM54HC160, Synchronous Binary Counter

74HC160 MM54 74HC161 MM54 74HC162 MM54 74HC163 January 1992 MM74HC160 Synchronous Decade Counter with Asynchronous Clear MM54HC161 MM74HC161 Synchro.
The MM54HC160 MM74HC160 MM54HC161 MM74HC161 MM54HC162 MM74HC162 and MM54HC163 MM74HC163 synchronous presettable counters utilize advanced silicon-gate.

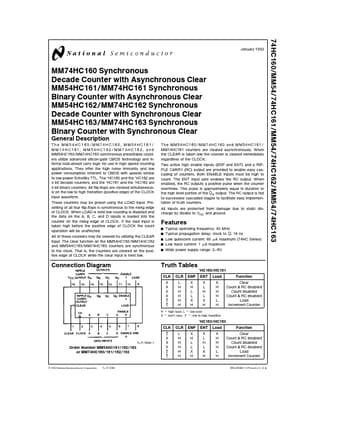

datasheet Preview Page 1 from Datasheet4u.com

MM54HC160_NationalSemiconductor.pdf

MM54HC160 Datasheet Preview — Preview of MM54HC160 PDF

Datasheet Details

Part number:

MM54HC160

Manufacturer:

National Semiconductor

File Size:

192.76 KB

Description:

Synchronous Binary Counter

Features

* Y Y Y Y Y Typical operating frequency 40 MHz Typical propagation delay clock to Q 18 ns Low quiescent current 80 mA maximum (74HC Series) Low input current 1 mA maximum Wide power supply range 2
* 6V http://www. DataSheet4U. net/ Connection Diagram Truth Tables ’HC160 HC161 CLK X X X X CLR

Applications

* They offer the high noise immunity and low power consumption inherent to CMOS with speeds similar to low power Schottky TTL The ’HC160 and the ’HC162 are 4 bit decade counters and the ’HC161 and the ’HC163 are 4 bit binary counters All flip-flops are clocked simultaneously on the low to high transit
