MM54HC162

Synchronous Binary Counter

MM54HC162 Features

* Y Y Y Y Y Typical operating frequency 40 MHz Typical propagation delay clock to Q 18 ns Low quiescent current 80 mA maximum (74HC Series) Low input current 1 mA maximum Wide power supply range 2

* 6V http://www.DataSheet4U.net/ Connection Diagram Truth Tables ’HC160 HC161 CLK X X X X CLR

MM54HC162 General Description

The MM54HC160 MM74HC160 MM54HC161 MM74HC161 MM54HC162 MM74HC162 and MM54HC163 MM74HC163 synchronous presettable counters utilize advanced silicon-gate CMOS technology and internal look-ahead carry logic for use in high speed counting applications They offer the high noise immunity and low power cons.

MM54HC162 Datasheet (192.76 KB)

Preview of MM54HC162 PDF

Datasheet Details

Part number:

MM54HC162

Manufacturer:

National Semiconductor

File Size:

192.76 KB

Description:

Synchronous binary counter.
74HC160 MM54 74HC161 MM54 74HC162 MM54 74HC163 January 1992 MM74HC160 Synchronous Decade Counter with Asynchronous Clear MM54HC161 MM74HC161 Synchro.

📁 Related Datasheet

MM54HC160 Synchronous Binary Counter (National Semiconductor)

MM54HC161 Synchronous Binary Counter (National Semiconductor)

MM54HC163 Synchronous Binary Counter (National Semiconductor)

MM54HC11 Triple 3-Input AND Gate (National)

MM54HC112 Dual J-K Flip-Flop (National Semiconductor)

MM54HC123A Dual Retriggerable Monostable Multivibrator (National)

MM54HC133 13-Input NAND Gate (National Semiconductor)

MM54HC147 10-to-4 Line Priority Encoder (National Semiconductor)

MM54HC148 8-3 Line Priority Encoder (National Semiconductor)

MM54HC174 Hex D Flip-Flops (National Semiconductor)

TAGS

MM54HC162 Synchronous Binary Counter National Semiconductor

Image Gallery

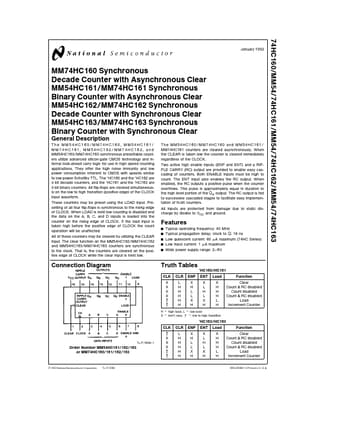

MM54HC162 Datasheet Preview Page 2 MM54HC162 Datasheet Preview Page 3
