MM54HCT190

Synchronous Decade Up/Down Counters

MM54HCT190 Features

* Y Y Y Y Level changes on Enable or Down Up can be made regardless of the level of the clock Low quiescent supply current 80 mA maximum (74HCT Series) Low input current 1 mA maximum TTL compatible inputs Connection Diagram Dual-In-Line Package Truth Table Load H H L H Enable G L L X H Down Up L H

MM54HCT190 General Description

These high speed synchronous counters utilize advanced silicon-gate CMOS technology They possess the high noise immunity and low power consumption of CMOS technology along with the speeds of low power Schottky TTL These circuits are synchronous reversible up down counters The MM54HCT191 MM74HCT191 a.

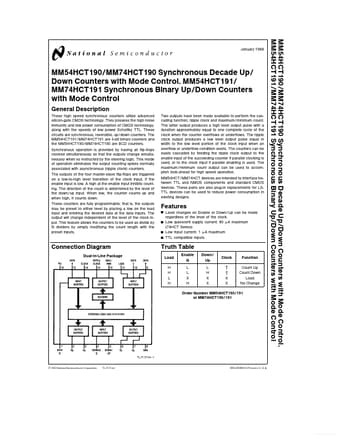

MM54HCT190 Datasheet (179.17 KB)

Preview of MM54HCT190 PDF

Datasheet Details

Part number:

MM54HCT190

Manufacturer:

National Semiconductor

File Size:

179.17 KB

Description:

Synchronous decade up/down counters.
MM54HCT190 MM74HCT190 Synchronous Decade Up Down Counters with Mode Control MM54HCT191 MM74HCT191 Synchronous Binary Up Down Counters with Mode Contro.
