MM54HCT640

Inverting Octal TRI-STATE Transceiver

MM54HCT640 Features

* Y TTL input compatible Y Octal TRI-STATE outputs for mP bus applications 6 mA typical Y High speed 16 ns typical propagation delay Y Low power 80 mA maximum (74HCT) Connection Diagram Dual-In-Line Packages TL F 5370

* 1 Top View Order Number MM54HCT640 or MM74HCT640 TL F 5370

* 2

MM54HCT640 General Description

These TRI-STATE bi-directional transceivers utilize advanced silicon-gate CMOS technology and are intended for two-way asynchronous communication between data buses They have high drive current outputs which enable high speed operation even when driving large bus capacitances These circuits possess .

MM54HCT640 Datasheet (118.25 KB)

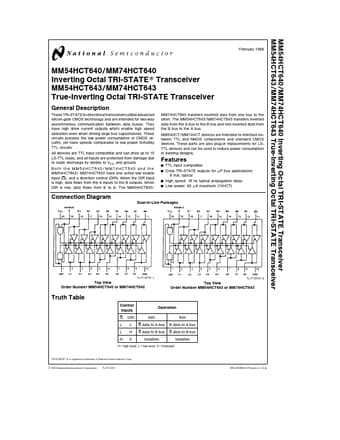

Preview of MM54HCT640 PDF

Datasheet Details

Part number:

MM54HCT640

Manufacturer:

National Semiconductor

File Size:

118.25 KB

Description:

Inverting octal tri-state transceiver.
MM54HCT640 MM74HCT640 Inverting Octal TRI-STATE Transceiver MM54HCT643 MM74HCT643 True-Inverting Octal TRI-STATE Transceiver February 1988 MM54HCT64.
