MM54HCT151 - 8-Channel Digital Multiplexer

National

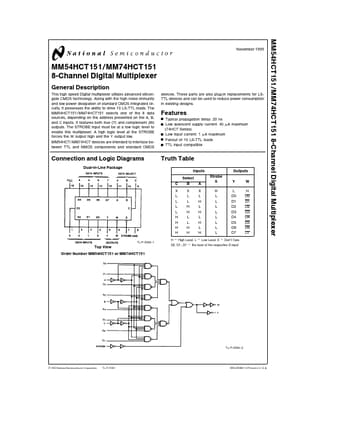

The MM54HCT151 by National is a 8-Channel Digital Multiplexer. Below is the official datasheet preview.

📥 Download Datasheet

MM54HCT151 8-Channel Digital Multiplexer by National - Datasheet Preview — Official preview page of the **MM54HCT151** 8-Channel Digital Multiplexer datasheet (National).

Datasheet Details

Part number	MM54HCT151
Manufacturer	National
File Size	137.08 KB
Description	8-Channel Digital Multiplexer
Datasheet	MM54HCT151_NationalSemiconductor.pdf
Additional preview pages of the MM54HCT151 datasheet.

MM54HCT151 Product details

Description

This high speed Digital multiplexer utilizes advanced silicongate CMOS technology Along with the high noise immunity and low power dissipation of standard CMOS integrated circuits it possesses the ability to drive 10 LS-TTL loads The MM54HCT151 MM74HCT151 selects one of the 8 data sources depending on the address presented on the A B and C inputs It

Features

both true (Y) and complement (W) outputs The STROBE input must be at a low logic level to enable this multiplexer A high logic level at the STROBE forces the W output high and the Y output low MM54HCT MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices These parts are also plug-in replacements for LSTTL devices and can be used to reduce power consumption in existing designs Features Y Y Y Y Y Typical propagation delay 20 ns Low quiescent supply.
