SCAN921260

X6 1:10 Deserializer

SCAN921260 Features

* n IEEE 1149.1 (JTAG) Compliant and at-speed BIST test modes n Deserializes one to six BusLVDS input serial data streams with embedded clocks n Seven selectable serial inputs to support n+1 redundancy of deserialized streams n Seventh channel has single pin monitor output that reflects input from sev

SCAN921260 General Description

The SCAN921260 integrates six deserializer devices into a single chip. The SCAN921260 can simultaneously deserialize up to six data streams that have been serialized by the National Semiconductor SCAN921023 Bus LVDS serializer. The device also includes a seventh serial input channel that serves as a.

SCAN921260 Datasheet (408.41 KB)

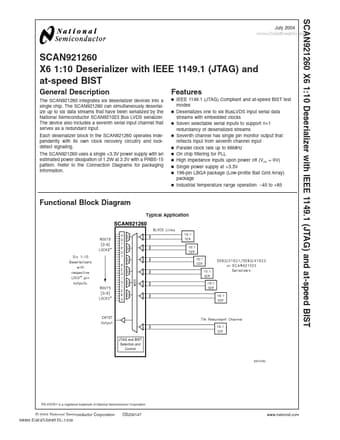

Preview of SCAN921260 PDF

Datasheet Details

Part number:

SCAN921260

Manufacturer:

National Semiconductor

File Size:

408.41 KB

Description:

X6 1:10 deserializer.
