SCAN928028 Datasheet - National Semiconductor

SCAN928028 8 Channel 10:1 Serializer

The SCAN928028 integrates eight serializer devices into a single chip. The SCAN928028 can simultaneously serialize up to eight 10-bit data streams. The 10-bit parallel inputs are LVTTL signal levels. The serialized outputs are LVDS signals with extra drive current for point-to-point and lightly load.

SCAN928028 Features

* n IEEE 1149.1 (JTAG) Compliant and At-Speed BIST test mode. n All 8 channels synchronous to one parallel clock rate, from 25 to 66 MHz n Duplicates function of multiple DS92LV1021 and ’1023 10-bit Serializer devices n Serializes from one to eight 10-bit parallel inputs into data streams with embedde

SCAN928028_NationalSemiconductor.pdf

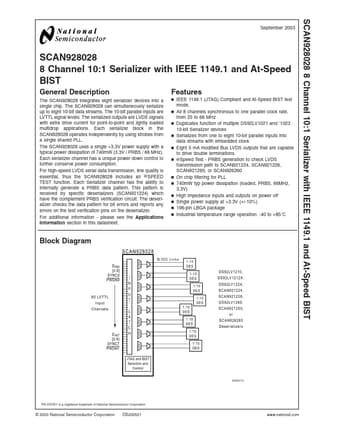

SCAN928028 Datasheet Preview — Preview of SCAN928028 PDF

Datasheet Details

Part number:

SCAN928028

Manufacturer:

National Semiconductor

File Size:

376.02 KB

Description:

8 channel 10:1 serializer.
