SCAN16602

Low Voltage Universal 16-bit IEEE 1149.1 Bus Transceiver

SCAN16602 Features

* IEEE 1149.1 (JTAG) Compliant 2.7V to 3.6V VCC Operation TRI-STATE outputs for bus-oriented applications Dual byte-wide data for bus applications Power down high Impedance inputs and outputs Optional Bus Hold on data inputs eliminates the need for external pullup/pulldown resistors (SCANH16602, SCANH

SCAN16602 General Description

The SCAN16602 is a high speed, low-power universal bus transceiver featuring data inputs organized into two 8-bit bytes with separate output enable and latch enable control signals. The byte-wide output enable controls are complimentary to allow direction control with a single R/W line and no additi.

SCAN16602 Datasheet (168.78 KB)

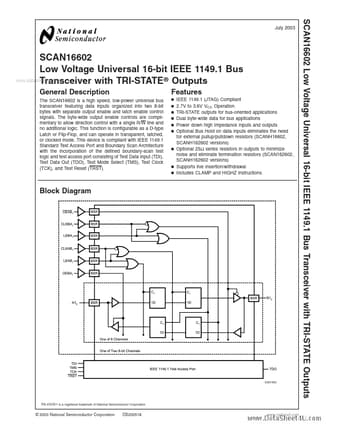

Preview of SCAN16602 PDF

Datasheet Details

Part number:

SCAN16602

Manufacturer:

National Semiconductor

File Size:

168.78 KB

Description:

Low voltage universal 16-bit ieee 1149.1 bus transceiver.
SCAN16602 Low Voltage Universal 16-bit IEEE 1149.1 Bus Transceiver with TRI-STATE Outputs July 2003 SCAN16602 Low Voltage Universal 16-bit IEEE 1149.
