SCAN18373T

Transparent Latch

SCAN18373T Features

* n n n n n n n n n n IEEE 1149.1 (JTAG) Compliant Buffered active-low latch enable TRI-STATE outputs for bus-oriented applications 9-bit data busses for parity applications Reduced-swing outputs source 24 mA/sink 48 mA Guaranteed to drive 50Ω transmission line to TTL input levels of 0.8V and 2.0V TTL

SCAN18373T General Description

The SCAN18373T is a high speed, low-power transparent latch featuring separate data inputs organized into dual 9-bit bytes with byte-oriented latch enable and output enable control signals. This device is compliant with IEEE 1149.1 Standard Test Access Port and Boundary Scan Architecture with the in.

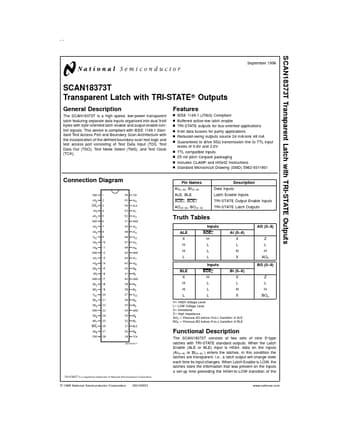

SCAN18373T Datasheet (170.88 KB)

Preview of SCAN18373T PDF

Datasheet Details

Part number:

SCAN18373T

Manufacturer:

National Semiconductor

File Size:

170.88 KB

Description:

Transparent latch.
