SCAN90CP02 1.5 Gbps 2x2 LVDS Crosspoint Switch

The SCAN90CP02 is a 1.5 Gbps 2 x 2 LVDS crosspoint switch. High speed data paths and flow-through pinout minimize internal device jitter, while configurable 0/25/50/100% pre-emphasis overcomes external ISI jitter effects of lossy backplanes and cables. The differential inputs interface to LVDS and B.

SCAN90CP02 Features

* 1

* 23 1.5 Gbps per channel

* Low power: 70 mA in dual repeater mode @1.5 Gbps

* Low output jitter

* Configurable 0/25/50/100% pre-emphasis drives lossy backplanes and cables

* Non-blocking architecture allows 1:2 splitter, 2:1 mux, crossover, and dual buffer c

SCAN90CP02 Datasheet (1.02 MB)

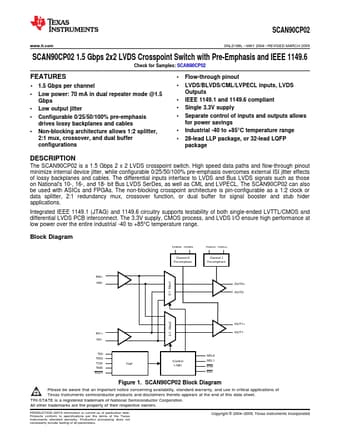

SCAN90CP02 Datasheet Preview — Preview of SCAN90CP02 PDF

Datasheet Details

Part number:

SCAN90CP02

Manufacturer:

Texas Instruments ↗

File Size:

1.02 MB

Description:

1.5 gbps 2x2 lvds crosspoint switch.
