SCAN921821 Dual 18-Bit Serializer

The SCAN921821 is a dual channel 18-bit serializer featuring signal conditioning, boundary SCAN, and at-speed BIST. Each serializer block transforms an 18-bit parallel LVCMOS/ LVTTL data bus into a single Bus LVDS data stream with embedded clock. This single serial data stream with embedded clock si.

SCAN921821 Features

* including IEEE 1149.1 and at-speed BIST PRBS pattern generation to facilitate verification of board and link integrity Features n 15-66 MHz Dual 18:1 Serializer with 2.376 Gbps total throughput n 8-level selectable pre-emphasis on each channel drives lossy cables and backplanes n > 15kV HBM ESD pro

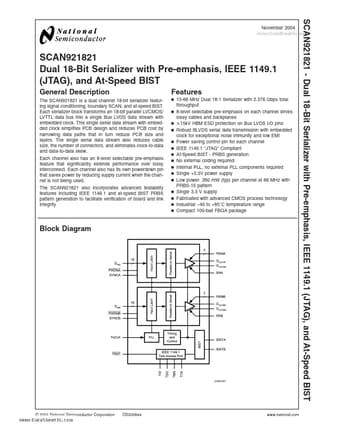

SCAN921821_NationalSemiconductor.pdf

SCAN921821 Datasheet Preview — Preview of SCAN921821 PDF

Datasheet Details

Part number:

SCAN921821

Manufacturer:

National Semiconductor

File Size:

656.17 KB

Description:

Dual 18-bit serializer.
