SCAN921260 Datasheet - Texas Instruments

SCAN921260 X6 1:10 Deserializer

The SCAN921260 integrates six deserializer devices into a single chip. The SCAN921260 can simultaneously deserialize up to six data streams that have been serialized by the Texas Instruments SCAN921023 Bus LVDS serializer. The device also includes a seventh serial input channel that serves as a redu.

SCAN921260 Features

* 1

* 2 IEEE 1149.1 (JTAG) Compliant and At-Speed BIST Test Modes

* Deserializes One to Six BusLVDS Input Serial Data Streams With Embedded Clocks

* Seven Selectable Serial Inputs to Support N+1 Redundancy of Deserialized Streams

* Seventh Channel Has Single Pin Monitor

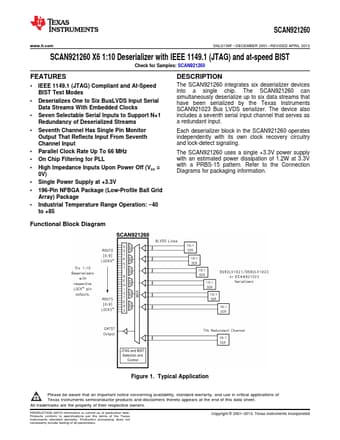

SCAN921260 Datasheet (838.77 KB)

SCAN921260 Datasheet Preview — Preview of SCAN921260 PDF

Datasheet Details

Part number:

SCAN921260

Manufacturer:

Texas Instruments ↗

File Size:

838.77 KB

Description:

X6 1:10 deserializer.
