SCAN12100

CPRI SerDes

SCAN12100 Features

* independent transmit and receive PLLs, on-chip oscillator, and intelligent clock management circuitry to automatically perform remote radio head synchronization and reduce the cost and complexity of external clock networks. The SCAN12100 is programmable though an MDIO interface as well as through pi

SCAN12100 General Description

The SCAN12100 is a 1228.8 and 614.4 Mbps serializer/deseralizer (SerDes) for high-speed bidirectional serial data transmission over FR-4 printed circuit board backplanes, balanced cables, and optical fiber. The SCAN12100 integrates precision delay calibration measurement (DCM) circuitry that measure.

SCAN12100 Datasheet (372.68 KB)

Preview of SCAN12100 PDF

Datasheet Details

Part number:

SCAN12100

Manufacturer:

National Semiconductor

File Size:

372.68 KB

Description:

Cpri serdes.

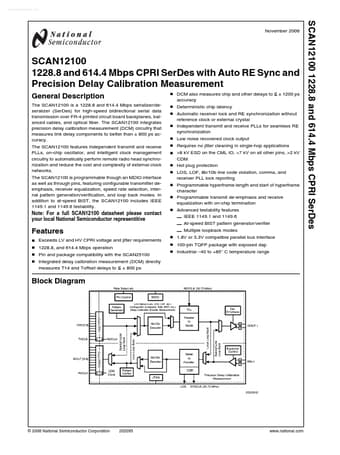

www.DataSheet4U.com SCAN12100 1228.8 and 614.4 Mbps CPRI SerDes November 2006 SCAN12100 1228.8 and 614.4 Mbps CPRI SerDes with Auto RE Sync and Pre.
