SCAN182245A

Non-Inverting Transceiver

SCAN182245A Features

* s High performance BiCMOS technology s 25Ω series resistors in outputs eliminate the need for external terminating resistors s Dual output enable control signals s 3-STATE outputs for bus-oriented applications s 25 mil pitch SSOP (Shrink Small Outline Package) s IEEE 1149.1 (JTAG) Compliant s Includ

SCAN182245A General Description

The SCAN182245A is a high performance BiCMOS bidirectional line driver featuring separate data inputs organized into dual 9-bit bytes with byte-oriented output enable and direction control signals. This device is compliant with IEEE 1149.1 Standard Test Access Port and Boundary Scan Architecture wit.

SCAN182245A Datasheet (138.05 KB)

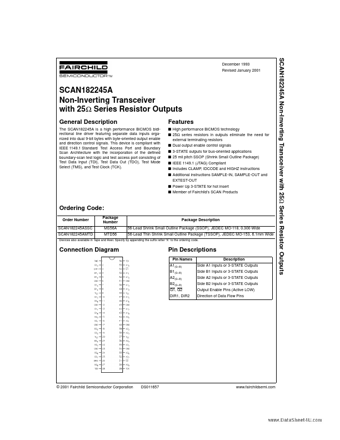

Preview of SCAN182245A PDF

Datasheet Details

Part number:

SCAN182245A

Manufacturer:

Fairchild Semiconductor

File Size:

138.05 KB

Description:

Non-inverting transceiver.
SCAN182245A Non-Inverting Transceiver with 25Ω Series Resistor Outputs December 1993 Revised January 2001 SCAN182245A Non-Inverting Transceiver with.
