SCANPSC110F Datasheet - Fairchild Semiconductor

SCANPSC110F SCAN Bridge Hierarchical and Multidrop Addressable JTAG Port

The SCANPSC110F Bridge extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a hierarchical approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. .

SCANPSC110F Features

* s True IEEE1149.1 hierarchical and multidrop addressable capability s The 6 slot inputs support up to 59 unique addresses, a Broadcast Address, and 4 Multi-cast Group Addresses s 3 IEEE 1149.1-compatible configurable local scan ports s Mode Register allows local TAPs to be bypassed, selected for ins

SCANPSC110F_FairchildSemiconductor.pdf

Preview of SCANPSC110F PDF

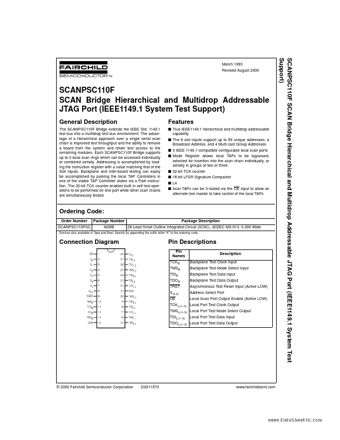

SCANPSC110F Datasheet Preview Page 2 SCANPSC110F Datasheet Preview Page 3

Datasheet Details

Part number:

SCANPSC110F

Manufacturer:

Fairchild Semiconductor

File Size:

273.25 KB

Description:

Scan bridge hierarchical and multidrop addressable jtag port.
