SCAN18245T

Non-Inverting Transceiver

SCAN18245T Features

* n n n n n n n n n n n IEEE 1149.1 (JTAG) Compliant Dual output enable control signals TRI-STATE outputs for bus-oriented applications 9-bit data busses for parity applications Reduced-swing outputs source 24 mA/sink 48 mA Guaranteed to drive 50Ω transmission line to TTL input levels of 0.8V and 2.0V

SCAN18245T General Description

The SCAN18245T is a high speed, low-power bidirectional line driver featuring separate data inputs organized into dual 9-bit bytes with byte-oriented output enable and direction control signals. This device is compliant with IEEE 1149.1 Standard Test Access Port and Boundary Scan Architecture with t.

SCAN18245T Datasheet (193.68 KB)

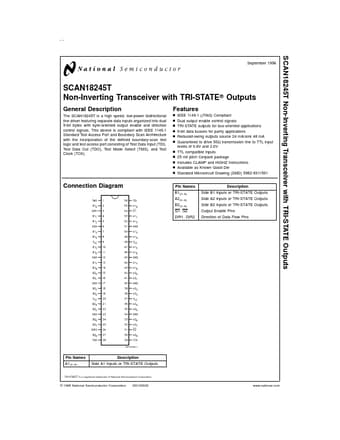

Preview of SCAN18245T PDF

Datasheet Details

Part number:

SCAN18245T

Manufacturer:

National Semiconductor

File Size:

193.68 KB

Description:

Non-inverting transceiver.
SCAN18245T Non-Inverting Transceiver with TRI-STATE Outputs September 1998 SCAN18245T Non-Inverting Transceiver with TRI-STATE ® Outputs General Des.
