NJM8065 - DUAL OPERATIONAL AMPLIFIER

New Japan Radio

📥 Download Datasheet

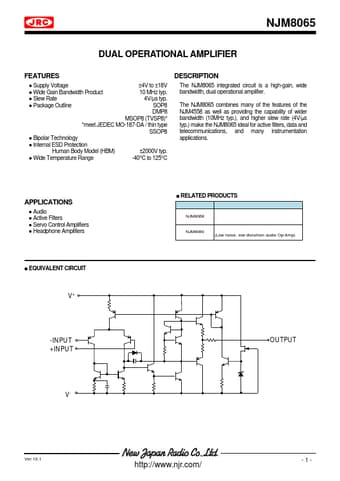

NJM8065 Datasheet Preview — Preview of NJM8065 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NJM8065
Manufacturer	New Japan Radio
File Size	947.83 KB
Description	DUAL OPERATIONAL AMPLIFIER
Datasheet	NJM8065-NewJapanRadio.pdf

NJM8065 Product details

Description

The NJM8065 integrated circuit is a high-gain, wide bandwidth, dual operational amplifier.The NJM8065 combines many of the

Features

Operating Voltage.
Wide Gain Bandwidth Product.
Slew Rate.
Package Outline.
Bipolar Technology.
Internal ESD protection Human body model (HBM).
Wide temperature range ±4V to ±18V 10MHz typ. 4V/μs typ. SOP8, DMP8 MSOP8 (TVSP8).
MEET JEDEC MO-187-DA / THIN TYPE SSOP8 ±2000V typ. -40℃ to +125℃.
PIN.
