NJM8068 - Dual Audio Operational amplifier

New Japan Radio

📥 Download Datasheet

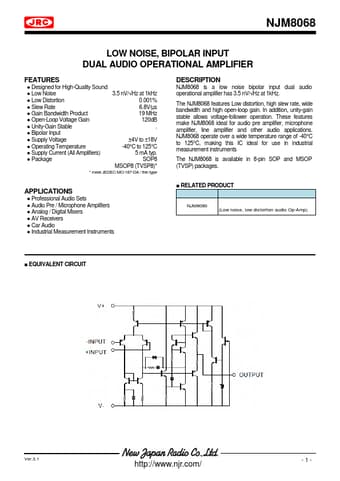

NJM8068 Datasheet Preview — Preview of NJM8068 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NJM8068
Manufacturer	New Japan Radio
File Size	1.03 MB
Description	Dual Audio Operational amplifier
Datasheet	NJM8068-NewJapanRadio.pdf

NJM8068 Product details

Description

NJM8068 is a low noise bipolar input dual audio operational amplifier has 3.5 nV/√Hz at 1kHz.

Features

Designed for High-Quality Sound.
Low Noise 3.5 nV/√Hz at 1kHz.
Low Distortion 0.001%.
Slew Rate.
Gain Bandwidth Product.
Open-Loop Voltage Gain.
Unity-Gain Stable 6.8V/µs 19 MHz 120dB.
Bipolar Input.
Supply Voltage.
Operating Temperature.
Supply Current (All Amplifiers).
Package ±4V to ±18V -40°C to 125°C 5 mA typ. SOP8 MSOP8 (TVSP8).
meet JEDEC MO-187-DA / thin type.
