NJM8021, NJM8020 - Low power Single Channel OP-Amp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NJM8021, NJM8020. Please refer to the document for exact specifications by model.

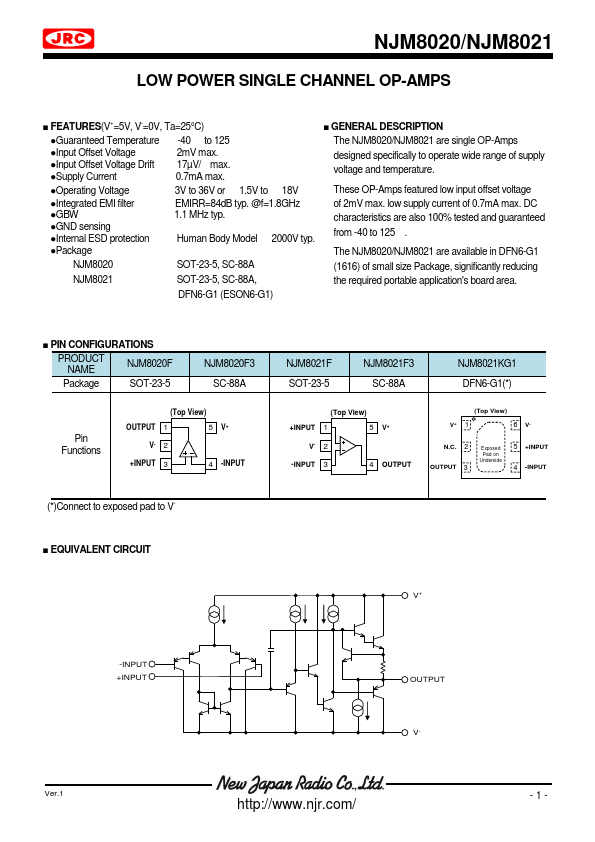

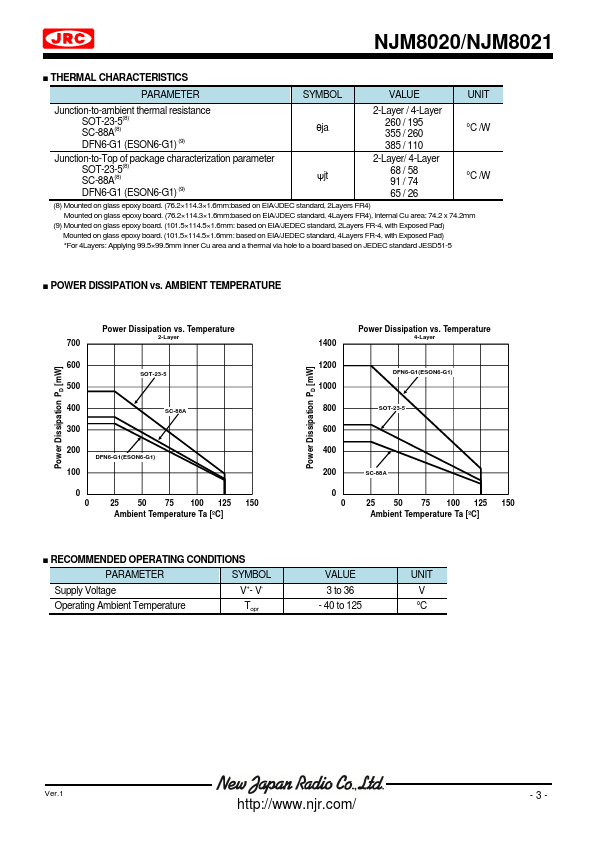

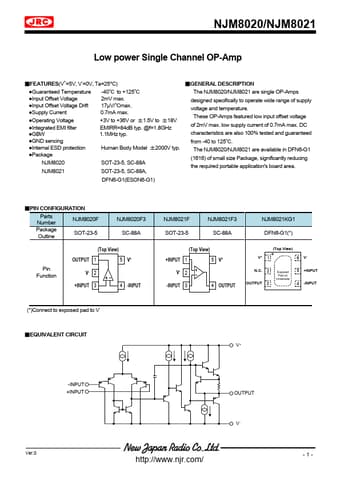

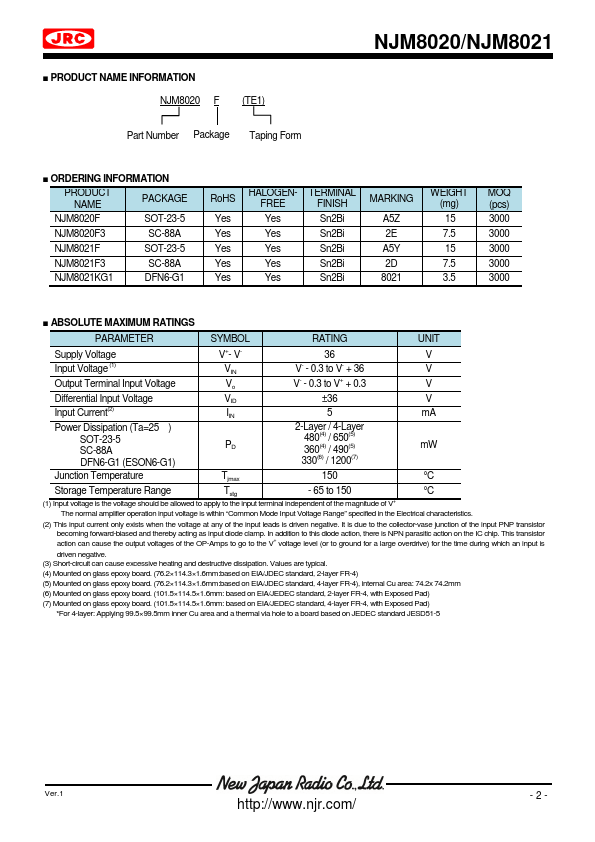

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number NJM8021, NJM8020
Manufacturer New Japan Radio
File Size 843.23 KB
Description Low power Single Channel OP-Amp
Datasheet download datasheet NJM8020-NewJapanRadio.pdf
Note This datasheet PDF includes multiple part numbers: NJM8021, NJM8020.
Please refer to the document for exact specifications by model.

NJM8021 Product details

Description

The NJM8020/NJM8021 are single OP-Amps designed specifically to operate wide range of supply voltage and temperature. Operating Voltage Integrated EMI filter GBW GND sensing Internal ESD protection Package 3V to 36V or 1.5V to 18V EMIRR=84dB typ.@f=1.8GHz 1.1 MHz typ.Human Body Model 2000V typ.These OP-Amps featured low input offset voltage of 2mV max.low supply current of 0.7mA max.DC characteristics are also 100% tested and guaranteed from -40 to 125 .The

Features
