NJM8020 - Low power Single Channel OP-Amp

New Japan Radio

📥 Download Datasheet

NJM8020 Datasheet Preview — Preview of NJM8020 PDF

Datasheet Details

Part number	NJM8020
Manufacturer	New Japan Radio
File Size	843.23 KB
Description	Low power Single Channel OP-Amp
Datasheet	NJM8020-NewJapanRadio.pdf

NJM8020 Product details

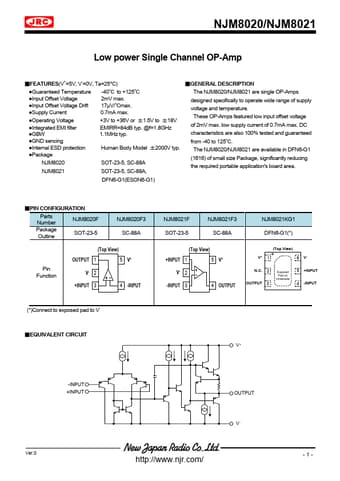

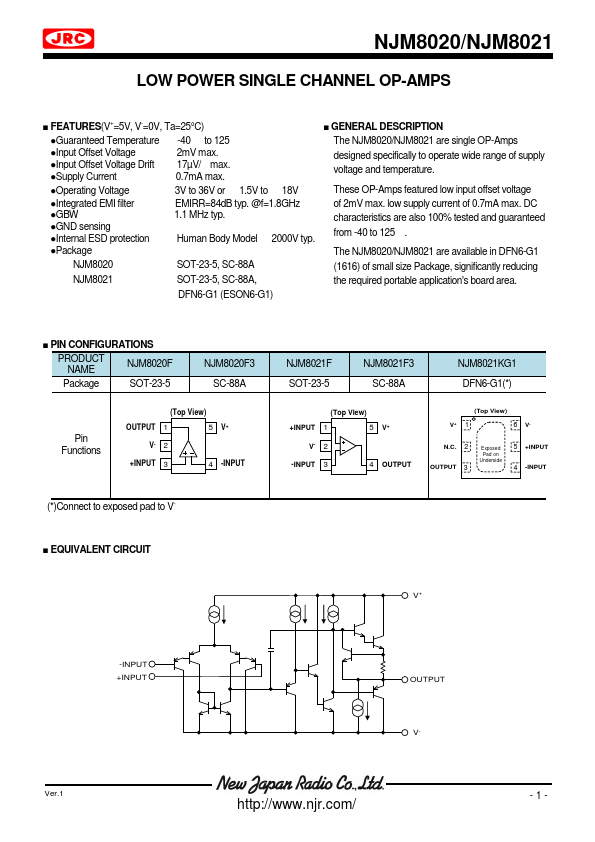

Description

The NJM8020/NJM8021 are single OP-Amps designed specifically to operate wide range of supply voltage and temperature. Operating Voltage Integrated EMI filter GBW GND sensing Internal ESD protection Package 3V to 36V or 1.5V to 18V EMIRR=84dB typ.@f=1.8GHz 1.1 MHz typ.Human Body Model 2000V typ.These OP-Amps featured low input offset voltage of 2mV max.low supply current of 0.7mA max.DC characteristics are also 100% tested and guaranteed from -40 to 125 .The

Features

S(V+=5V, V-=0V, Ta=25°C).
Guaranteed Temperature -40 to 125.
Input Offset Voltage 2mV max.
Input Offset Voltage Drift 17µV/ max.
Supply Current 0.7mA max.
