NJM8502

JFET Input Operational Amplifier

NJM8502 Features

* Low Input Offset Voltage VIO=400µV max. VIO=700µV max. (Ta= -40ºC to +125ºC)

* Low Input Offset Voltage Drift ∆VIO/∆T=10µV/ºC max. (Ta= -40ºC to +125ºC)

* Small Package MSOP8(VSP8) MEET JEDEC MO-187-DA

* Low Supply Current Icc=3mA max.

* High Slew Rate SR=20V/µs typ.

NJM8502 General Description

The NJM8502 is a dual high precision JFET input operational amplifier featuring low offset, low offset drift, low bias current, high slew rate, low noise and wide operating temperature range. The precision performance, high speed and low noise make the NJM8502 especially suitable for filter and ampl.

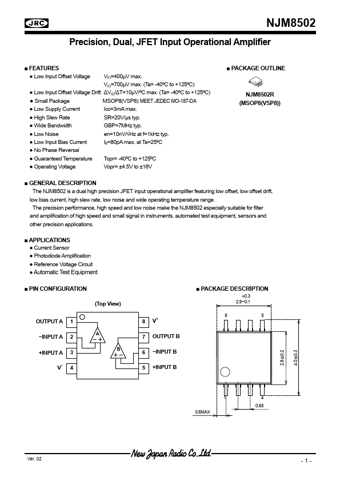

NJM8502 Datasheet (542.22 KB)

Preview of NJM8502 PDF

Datasheet Details

Part number:

NJM8502

Manufacturer:

New Japan Radio

File Size:

542.22 KB

Description:

Jfet input operational amplifier.
