NJM8524

Rail-to-Rail Output Operational Amplifier

NJM8524 Features

* Supply Current

* Rail-to-Rail Output

* Operation Voltage

* Input Offset Voltage

* Input Bias Current

* Slew Rate

* GBW

* Over Input Voltage Tolerant

* RF Immunity

* Bipolar Technology

* Package 25µA /ch (at VCC=5V.) 0.2V to 4.9V min. (at VCC=5V, RL=20kΩ) +3V to +3

NJM8524 General Description

The NJM8524 is a Rail-to-Rail output quad operational amplifier that operates from a single supply of 3V to 36V, with low supply current 25uA/ch (Vcc = 5V) and low offset voltage 1.8mV max. Rail-to-Rail output can secure output dynamic range easily. An input common-mode voltage range that includes G.

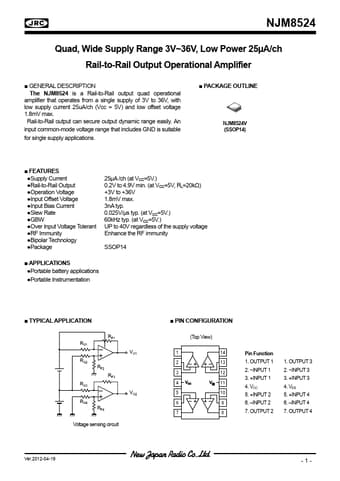

NJM8524 Datasheet (339.66 KB)

Preview of NJM8524 PDF

Datasheet Details

Part number:

NJM8524

Manufacturer:

New Japan Radio

File Size:

339.66 KB

Description:

Rail-to-rail output operational amplifier.
