NJM8513, NJM8512 - JFET Input Operational Amplifier

New Japan Radio

📥 Download Datasheet

NJM8513 Datasheet Preview — This datasheet PDF includes multiple part numbers: NJM8513, NJM8512. Please refer to the document for exact specifications by model.

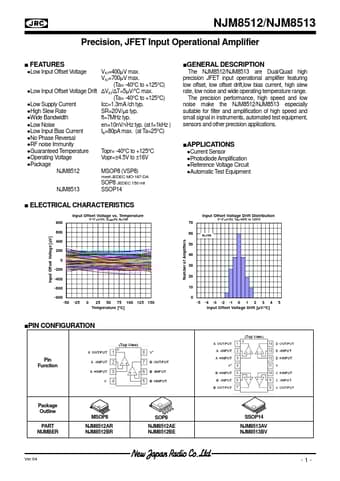

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NJM8513, NJM8512
Manufacturer	New Japan Radio
File Size	1.71 MB
Description	JFET Input Operational Amplifier
Datasheet	NJM8512-NewJapanRadio.pdf
Note	This datasheet PDF includes multiple part numbers: NJM8513, NJM8512. Please refer to the document for exact specifications by model.

NJM8513 Product details

Description

The NJM8512/NJM8513 are Dual/Quad high p

Features

Low Input Offset Voltage VIO=400μV max. VIO=700μV max. (Ta= -40°C to +125°C).
Low Input Offset Voltage Drift ΔVIO/ΔT=5μV/°C max. (Ta= -40°C to +125°C).
Low Supply Current Icc=1.3mA /ch typ.
High Slew Rate SR=20V/μs typ.
Wide Bandwidth ft=7MHz typ.
Low Noise en=10nV/Hz typ. (at f=1kHz ).
Low Input Bias Current.
No Phase Reversal IB=80pA max. (at Ta=25°C).
RF noise Immunity.
Guaranteed Temperature Topr= -40°C to +125°C.
Operating.
