NJM8530, NJM8532, Rail-to-Rail Input/Output Operational Amplifier

NJM8530/NJM8532/NJM8534 14V, 10nV/√Hz, 300μA/ch, Rail-to-Rail Input/Output Operational Amplifier .
The NJM8530/NJM8532/NJM8534 are single, dual and quad rail to rail input and output single supply operational amplifier featuring 14V supply vo.

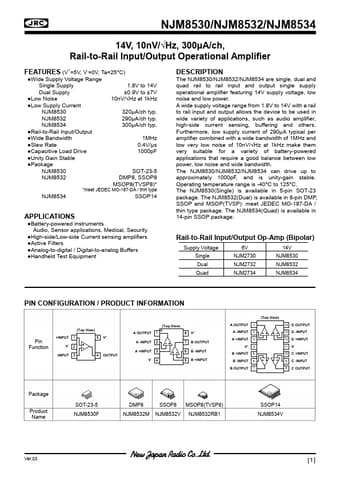

datasheet Preview Page 1 from Datasheet4u.com

NJM8532_NewJapanRadio.pdf

NJM8530 Datasheet Preview — This datasheet PDF includes multiple part numbers: NJM8530, NJM8532. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NJM8530, NJM8532

Manufacturer:

New Japan Radio

File Size:

1.71 MB

Description:

Rail-to-Rail Input/Output Operational Amplifier

Note:

This datasheet PDF includes multiple part numbers: NJM8530, NJM8532.
Please refer to the document for exact specifications by model.

Features

* (V+=5V, V-=0V, Ta=25°C)
* Wide Supply Voltage Range Single Supply 1.8V to 14V Dual Supply ±0.9V to ±7V
* Low Noise 10nV/√Hz at 1kHz
* Low Supply Current NJM8530 320μA/ch typ. NJM8532 290μA/ch typ. NJM8534 300μA/ch typ.
* Rail-to-Rail Input/Output
* Wide Bandwidth 1MHz

Applications

* Battery-powered instruments Audio, Sensor applications, Medical, Security
* High-side/Low-side Current sensing amplifiers
* Active Filters
* Analog-to-digital / Digital-to-analog Buffers
