NJM8534

Rail-to-Rail Input/Output Operational Amplifier

NJM8534 Features

* (V+=5V, V-=0V, Ta=25°C)

* Wide Supply Voltage Range Single Supply 1.8V to 14V Dual Supply ±0.9V to ±7V

* Low Noise 10nV/√Hz at 1kHz

* Low Supply Current NJM8530 320μA/ch typ. NJM8532 290μA/ch typ. NJM8534 300μA/ch typ.

* Rail-to-Rail Input/Output

* Wide Bandwidth 1MHz

NJM8534 General Description

The NJM8530/NJM8532/NJM8534 are single, dual and quad rail to rail input and output single supply operational amplifier featuring 14V supply vo.

NJM8534 Datasheet (1.71 MB)

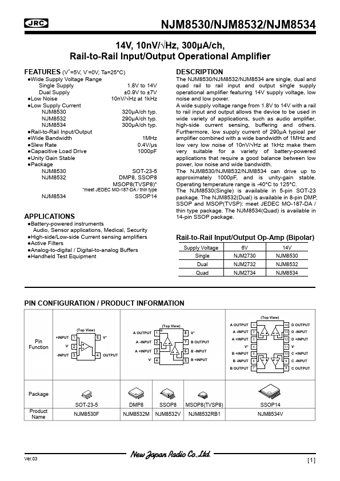

Preview of NJM8534 PDF

Datasheet Details

Part number:

NJM8534

Manufacturer:

New Japan Radio

File Size:

1.71 MB

Description:

Rail-to-rail input/output operational amplifier.
