NJW4185 - High Voltage Low Dropout Regulator

New Japan Radio

NJW4185 Datasheet Preview — Preview of NJW4185 PDF

Datasheet Details

Part number	NJW4185
Manufacturer	New Japan Radio
File Size	405.83 KB
Description	High Voltage Low Dropout Regulator
Datasheet	NJW4185-NewJapanRadio.pdf

NJW4185 Product details

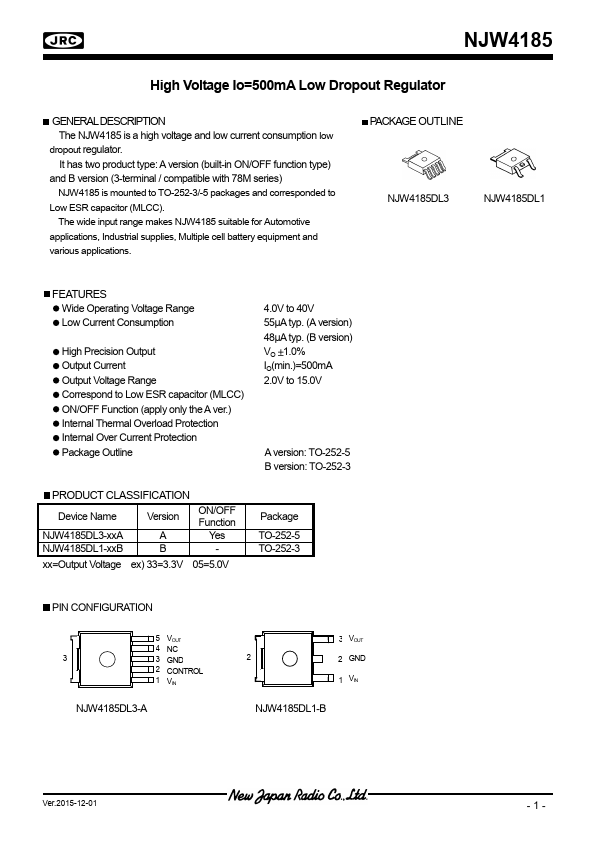

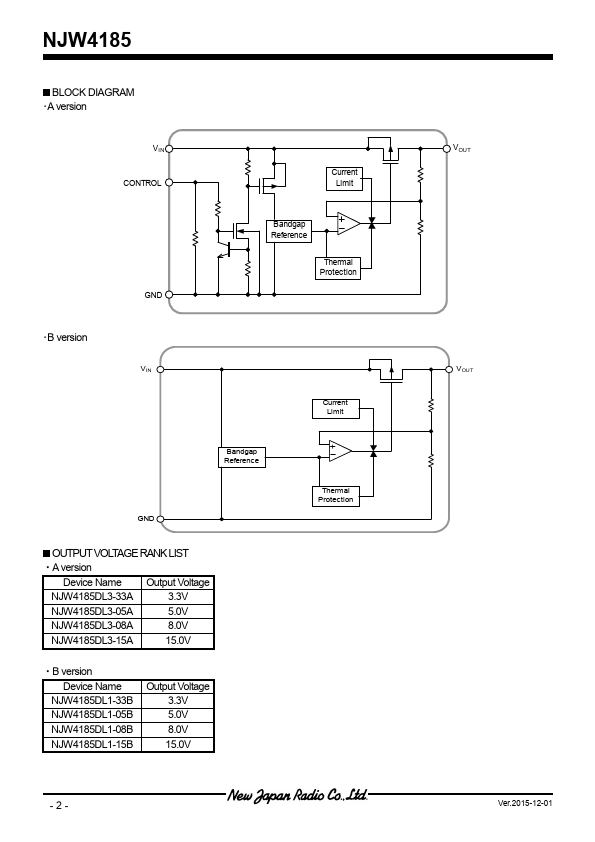

Description

The NJW4185 is a high voltage and low current consumption low dropout regulator.It has two product type: A version (built-in ON/OFF function type) and B version (3-terminal / compatible with 78M series) NJW4185 is mounted to TO-252-3/-5 packages and corresponded to Low ESR capacitor (MLCC).The wide input range makes NJW4185 suitable for Automotive applications, Industrial supplies, Multiple cell battery equipment and various applications.PACKAGE OUTLINE NJW4185DL3 NJW4185DL1

Features

Wide Operating Voltage Range Low Current Consumption High Precision Output Output Current Output Voltage Range Correspond to Low ESR capacitor (MLCC) ON/OFF Function (apply only the A ver. ) Internal Thermal Overload Protection Internal Over Current Protection Package Outline 4.0V to 40V 55μA typ. (A version) 48μA typ. (B version) VO 1.0% IO(min. )=500mA 2.0V to 15.0V A version: TO-252-5 B version: TO-252-3.
