NJW4188 - High Voltage Adjustable Low Dropout Regulator

Datasheet Summary

Description

low dropout regulator.

the optimum selection for various applications.

to Low ESR capacitor (MLCC).

Features

  • Operating Voltage Range Low Current Consumption Correspond to Low ESR capacitor (MLCC) Output Current Available Output Voltage Range High Precision Reference Voltage ON/OFF Control Internal Thermal Overload Protection Internal Over Current Protection Package Outline 4.0V to 40V 55μA typ. IO (min. )=1000mA 2.0V to 15.0V Vref 1.0% TO-252-5 PIN.

📥 Download Datasheet

Datasheet preview – NJW4188

Datasheet Details

Part number NJW4188
Manufacturer JRC
File Size 1.36 MB
Description High Voltage Adjustable Low Dropout Regulator
Datasheet download datasheet NJW4188 Datasheet

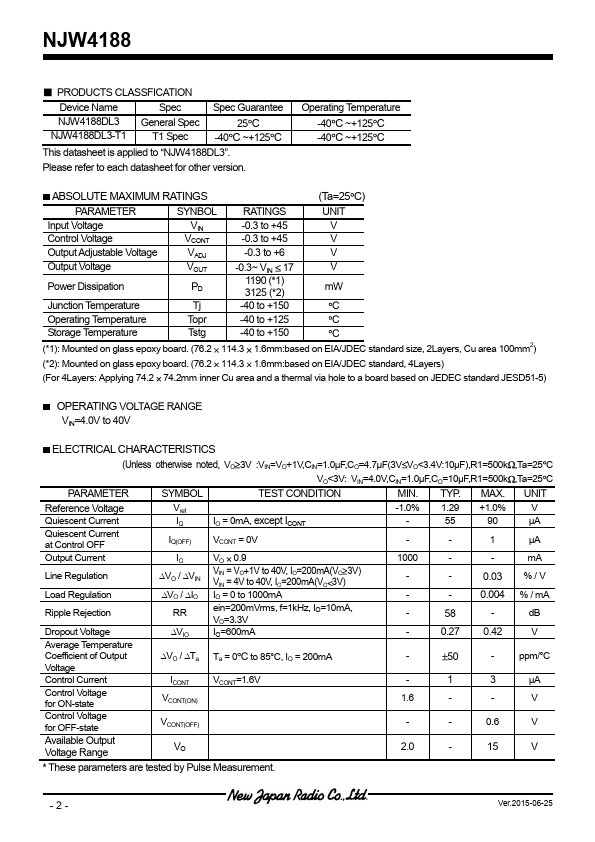

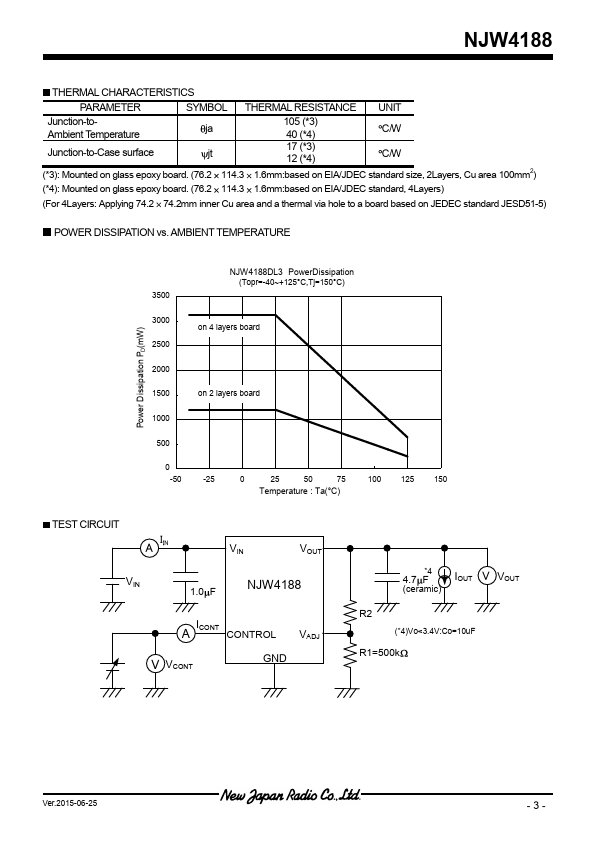

Additional preview pages of the NJW4188 datasheet.

📁 Similar Datasheet

  • NJW4180 - High Voltage Low current consumption Regulator (New Japan Radio)
  • NJW4181 - Regulator (New Japan Radio)
  • NJW4182 - High Voltage Ultra low current consumption Io=100mA LDO (New Japan Radio)
  • NJW4183 - Low dropout Regulator (New Japan Radio)
  • NJW4184 - Low Dropout Regulator (New Japan Radio)
  • NJW4185 - High Voltage Low Dropout Regulator (New Japan Radio)
  • NJW4186 - High Voltage Adjustable Low Dropout Regulator (New Japan Radio)
  • NJW4100 - Lithium-ion Battery Charger Controller (New Japan Radio)
  • NJW4104 - 45V Ultra low Quiescent current LDO (Nisshinbo)
  • NJW4107 - LDO (New Japan Radio)
Other Datasheets by JRC
  • NJW4187 - High Voltage Low Dropout Regulator
  • NJW4108 - Lithium-ion Battery Charger Controller
  • NJW4119 - BUCK SWITCHING REGULATOR
  • NJW4120 - Lithium-Battery Charger Controller
  • NJW4124 - Lithium-Battery Charger Controller
  • NJW4133 - 45V 5A MOSFET Switching Regulator
  • NJW4138 - Internal 45V MOSFET Switching Regulator
  • NJW4210 - Synchronous Buck Boost Switching Controller

Full PDF Text Transcription

Click to expand full text

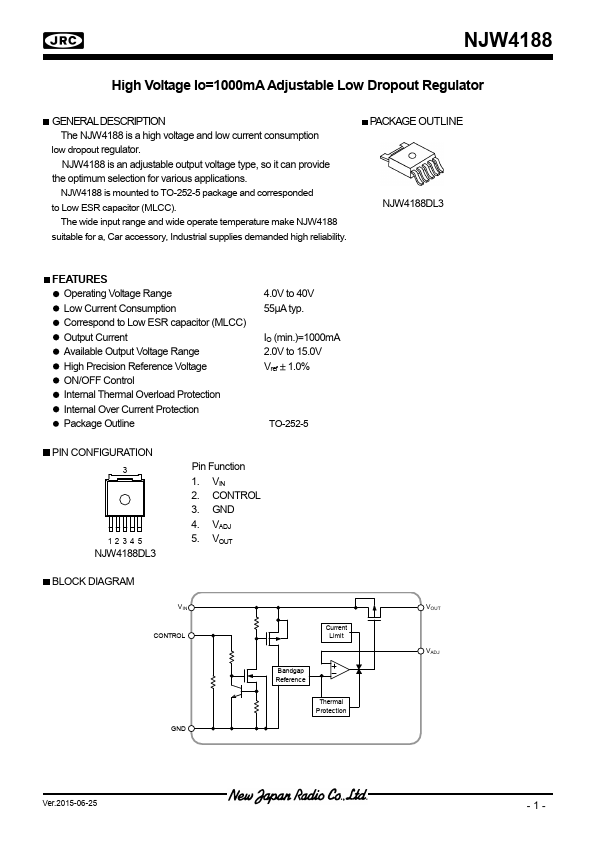

NJW4188 High Voltage Io=1000mA Adjustable Low Dropout Regulator GENERAL DESCRIPTION The NJW4188 is a high voltage and low current consumption low dropout regulator. NJW4188 is an adjustable output voltage type, so it can provide the optimum selection for various applications. NJW4188 is mounted to TO-252-5 package and corresponded to Low ESR capacitor (MLCC). The wide input range and wide operate temperature make NJW4188 suitable for a, Car accessory, Industrial supplies demanded high reliability.
