NJW4186 Datasheet PDF - New Japan Radio High Voltage Adjustable Low Dropout Regulator Specs

NJW4186 - High Voltage Adjustable Low Dropout Regulator

Datasheet Summary

Description

low dropout regulator.

the optimum selection for various applications.

to Low ESR capacitor (MLCC).

Features

Operating Voltage Range Low Current Consumption Correspond to Low ESR capacitor (MLCC) Output Current High Precision Reference Voltage Available Output Voltage Range ON/OFF Control Internal Thermal Overload Protection Internal Over Current Protection Package Outline 4.0 to 40V 55µAtyp. (Ta= 25°C) IO(min. )=500mA Vref ±1.0% (Ta=25°C) 2.0V to 16.0V TO-252-5 PIN.

Datasheet Details

Part number	NJW4186
Manufacturer	New Japan Radio
File Size	419.21 KB
Description	High Voltage Adjustable Low Dropout Regulator
Datasheet	NJW4186 Datasheet

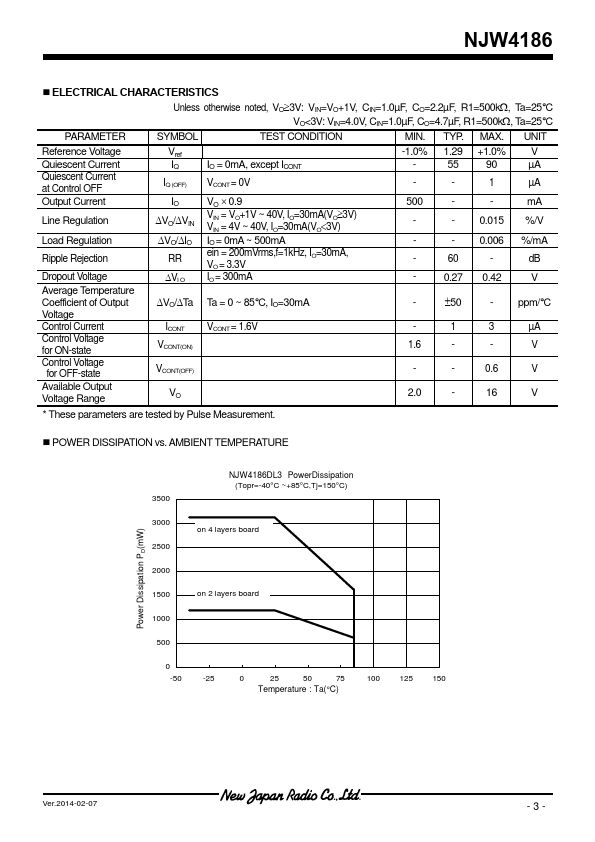

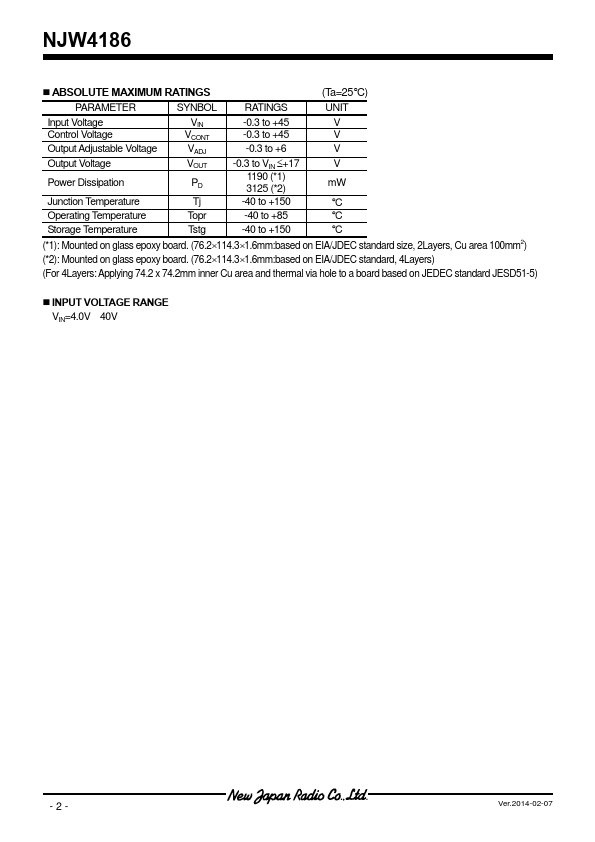

Additional preview pages of the NJW4186 datasheet.

📁 Similar Datasheet

NJW4187 - High Voltage Low Dropout Regulator (JRC)

NJW4188 - High Voltage Adjustable Low Dropout Regulator (JRC)

NJW4104 - 45V Ultra low Quiescent current LDO (Nisshinbo)

NJW4108 - Lithium-ion Battery Charger Controller (JRC)

NJW4109 - 500mA LDO (Nisshinbo)

NJW4119 - BUCK SWITCHING REGULATOR (JRC)

NJW4120 - Lithium-Battery Charger Controller (JRC)

NJW4124 - Lithium-Battery Charger Controller (JRC)

NJW4133 - 45V 5A MOSFET Switching Regulator (JRC)

NJW4138 - Internal 45V MOSFET Switching Regulator (JRC)

Full PDF Text Transcription

Click to expand full text

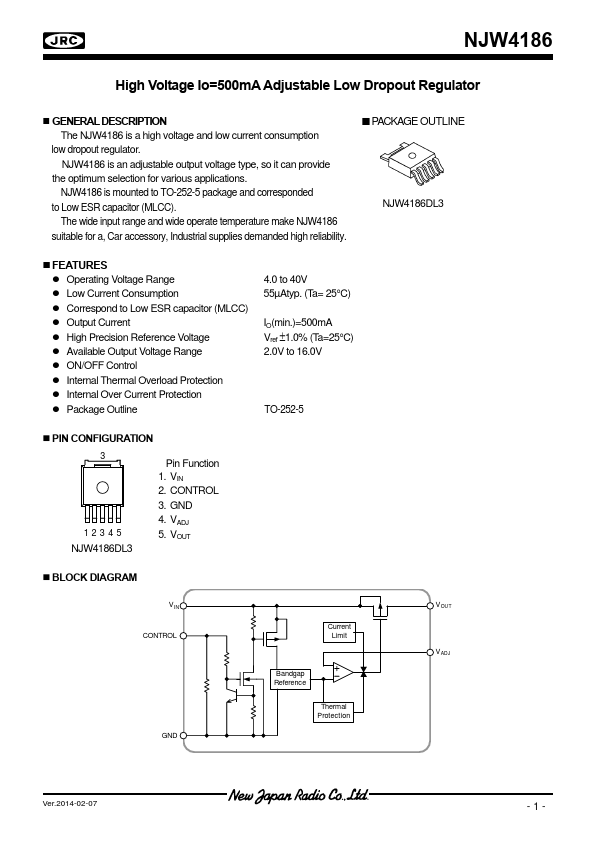

NJW4186 High Voltage Io=500mA Adjustable Low Dropout Regulator GENERAL DESCRIPTION The NJW4186 is a high voltage and low current consumption low dropout regulator. NJW4186 is an adjustable output voltage type, so it can provide the optimum selection for various applications. NJW4186 is mounted to TO-252-5 package and corresponded to Low ESR capacitor (MLCC). The wide input range and wide operate temperature make NJW4186 suitable for a, Car accessory, Industrial supplies demanded high reliability.
