PDMB150B12C IGBT

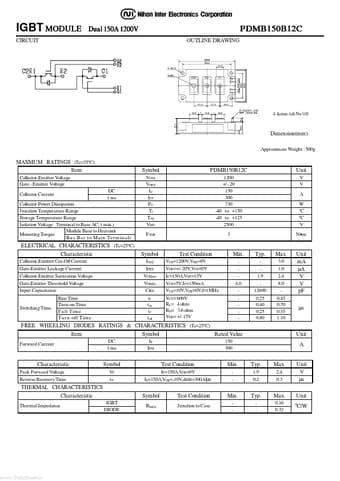

IGBT MODULE CIRCUIT Dual 150A 1200V OUTLINE DRAWING PDMB150B12C 4- fasten- tab No 110 Dimension(mm) Approximate Weight : 500g MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR PDMB150B12C 1200 +/ - 20 150 300 730 -40 to +150 -40 to +125 2500 3 Unit V V A W °C °C V N m Collector Power Dissipation Junction Temperature Range Storage Temperature Range Isolation Voltage Terminal to Bas.
