P75N02LSG N-Channel MOSFET

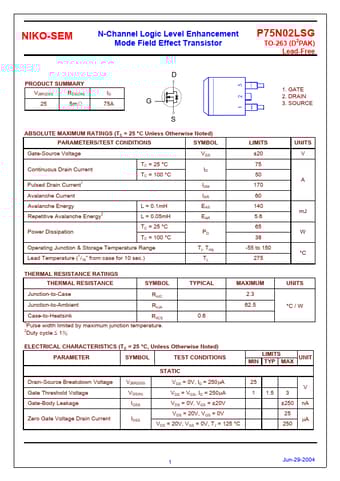

NIKO-SEM N-Channel Logic Level Enhancement Mode Field Effect Transistor P75N02LSG TO-263 (D2PAK) Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 25 5mΩ ID 75A D G 1. GATE 2. DRAIN 3. SOURCE S ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy L = 0.1mH Repetitive Avalanche Energy2 L = 0.05mH Power Dissipation TC.
