P75N06 - PJP75N06

P75N06 Description

PJP75N06 60V N-Channel Enhancement Mode MOSFET .

P75N06 Features

* RDS(ON), VGS@10V,IDS@30A=13mΩ
* RDS(ON), VGS@4.5V,IDS@30A=18mΩ
* Advanced Trench Process Technology
* High Density Cell Design For Ultra Low On-Resistance
* Specially Designed for Converters and Power Motor Controls
* Fully Characterized Avalanche Vo

📥 Download Datasheet

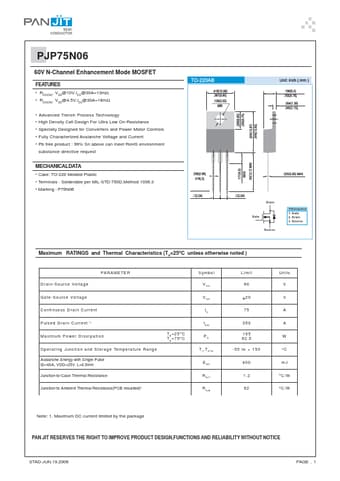

Preview of P75N06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P75N06
Manufacturer
Pan Jit International
File Size
134.32 KB
Datasheet
P75N06-PanJitInternational.pdf
Description
PJP75N06
