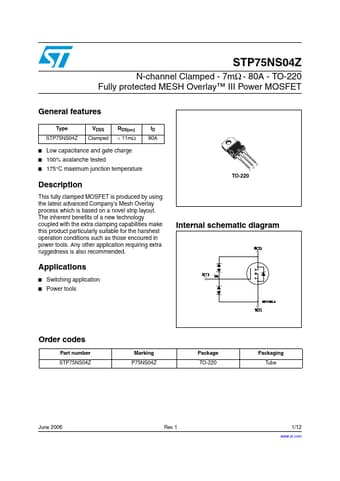

P75NS04Z Datasheet, Stp75ns04z, STMicroelectronics

P75NS04Z Features

• Stp75ns04z Type STP75NS04Z VDSS Clamped RDS(on) < 11mΩ ID 80A
• Low capacitance and gate charge
• 100% avalanche tested
• 175°C maximum junction temperature Descripti

PDF File Details

Part number:

P75NS04Z

Manufacturer:

STMicroelectronics ↗

File Size:

209.39kb

Download:

📄 Datasheet

Description:

Stp75ns04z. This fully clamped MOSFET is produced by using the latest advanced Company’s Mesh Overlay process which is based on a novel strip lay

P75NS04Z Application

• Applications
• Switching application
• Power tools 3 2 1 TO-220 Internal schematic diagram Order codes Part number STP75NS04Z Mar
