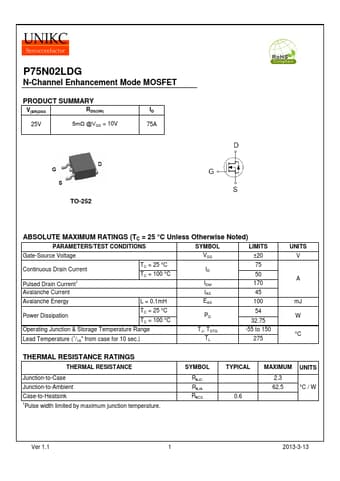

P75N02LDG N-Channel MOSFET

P75N02LDG N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 25V 5mΩ @VGS = 10V 75A TO-252 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C ID 75 TC = 100 °C 50 IDM 170 Avalanche Current IAS 45 Avalanche Energy L = 0.1mH EAS 100 Power Dissipation TC = 25 °C PD TC = 100 °C 54 32.75 Operating Junction & Sto.

P75N02LDG Datasheet (588.56 KB)
