NJG1187KG1 - GNSS High Gain Low Noise Amplifier

Nisshinbo

Datasheet Details

Part number	NJG1187KG1
Manufacturer	Nisshinbo
File Size	1.44 MB
Description	GNSS High Gain Low Noise Amplifier
Datasheet	NJG1187KG1-Nisshinbo.pdf

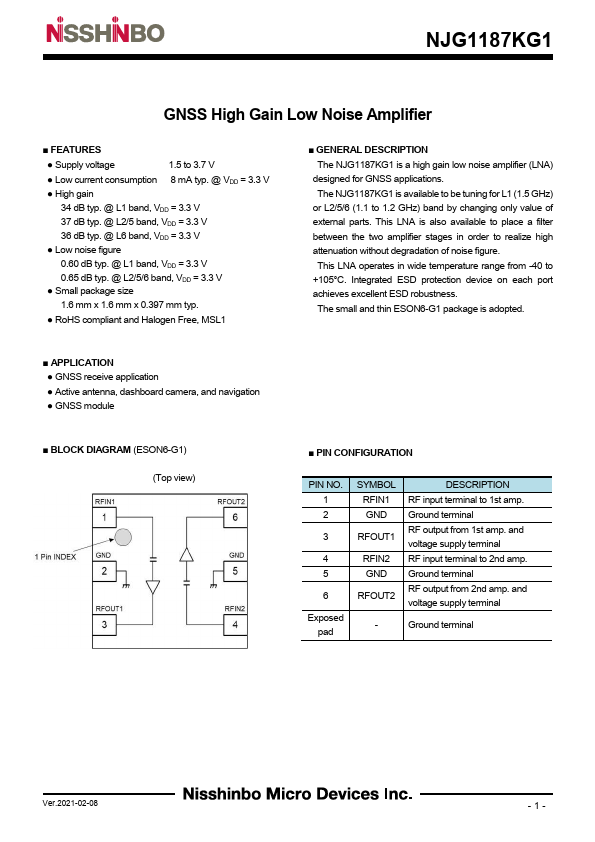

The NJG1187KG1 is a high gain low noise amplifier (LNA) designed for GNSS applications.

S.
Supply voltage 1.5 to 3.7 V.
Low current consumption 8 mA typ. @ VDD = 3.3 V.
High gain 34 dB typ. @ L1 band, VDD = 3.3 V 37 dB typ. @ L2/5 band, VDD = 3.3 V 36 dB typ. @ L6 band, VDD = 3.3 V.
Low noise figure 0.60 dB typ. @ L1 band, VDD = 3.3 V 0.65 dB typ. @ L2/5/6 band, VDD = 3.3 V.
Small package size 1.6 mm x 1.6 mm x 0.397 mm typ.
RoHS compliant and Halogen Free, MSL1.
