NJG1801AKGC-A - SPDT SWITCH GaAs MMIC

Nisshinbo

NJG1801AKGC-A Datasheet Preview — Preview of NJG1801AKGC-A PDF

Datasheet Details

Part number	NJG1801AKGC-A
Manufacturer	Nisshinbo
File Size	796.31 KB
Description	SPDT SWITCH GaAs MMIC
Datasheet	NJG1801AKGC-A-Nisshinbo.pdf

NJG1801AKGC-A Product details

Description

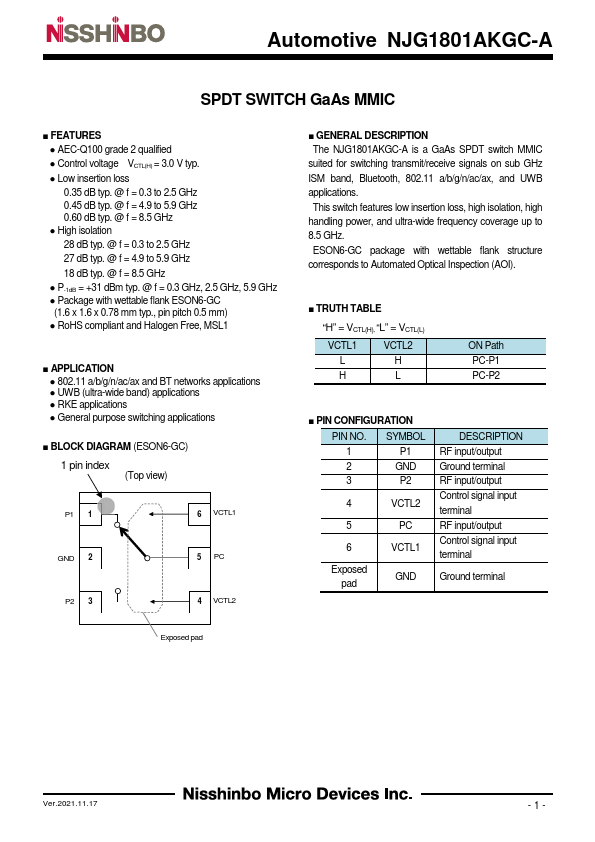

The NJG1801AKGC-A is a GaAs SPDT switch MMIC suited for switching transmit/receive signals on sub GHz ISM band, Bluetooth, 802.11 a/b/g/n/ac/ax, and UWB applications.

Features

S.
AEC-Q100 grade 2 qualified.
Control voltage VCTL(H) = 3.0 V typ.

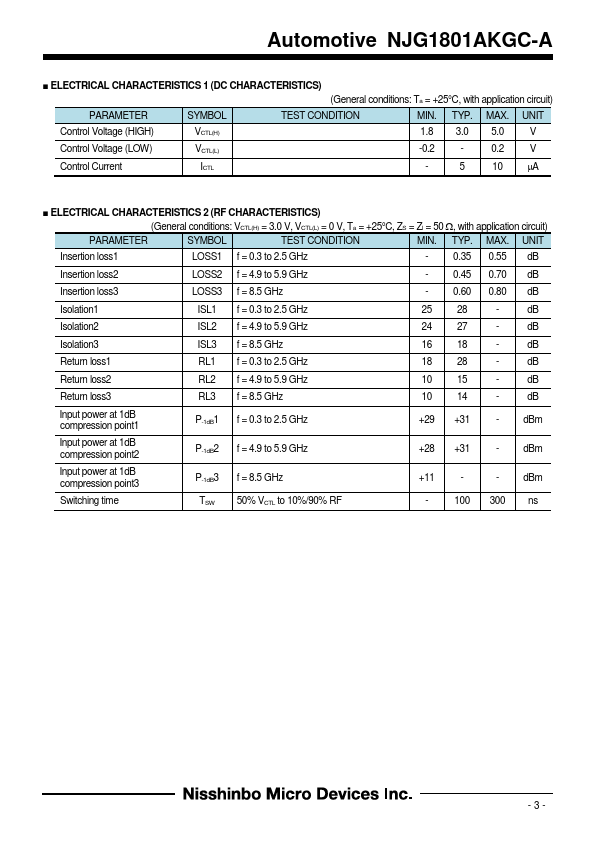

Low insertion loss 0.35 dB typ. @ f = 0.3 to 2.5 GHz 0.45 dB typ. @ f = 4.9 to 5.9 GHz 0.60 dB typ. @ f = 8.5 GHz.
High isolation 28 dB typ. @ f = 0.3 to 2.5 GHz 27 dB typ. @ f = 4.9 to 5.9 GHz 18 dB typ. @ f = 8.5 GHz.
P-1dB = +31 dBm typ. @ f = 0.3 GHz, 2.5 GHz, 5.9 GHz.
Package with wettable flank ESON6-GC (1.6 x 1.6 x 0.78 mm typ. , pin pitch 0.5 mm).
RoHS compliant and Halogen Free, MSL1.
