NJG1188KG1 - Broadband Low Noise Amplifier GaAs MMIC

Nisshinbo

📥 Download Datasheet

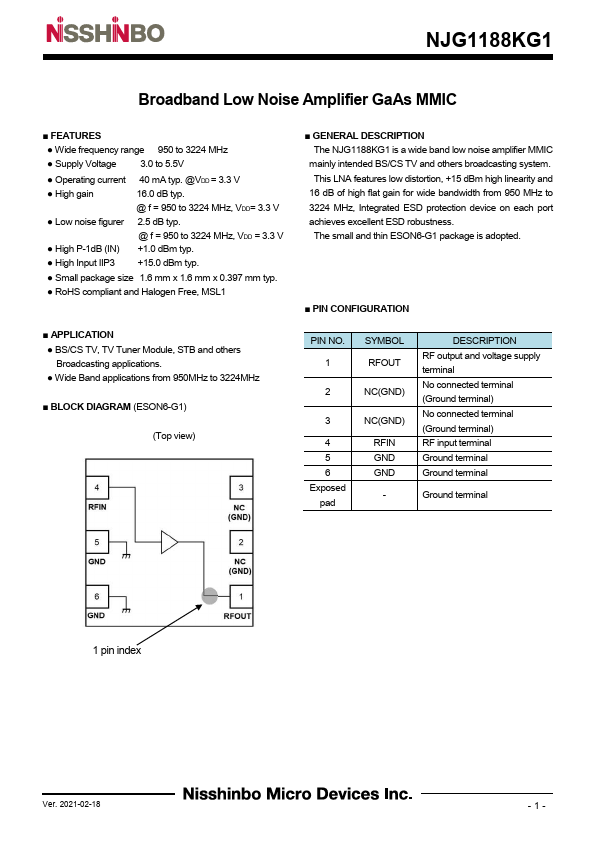

NJG1188KG1 Datasheet Preview — Preview of NJG1188KG1 PDF

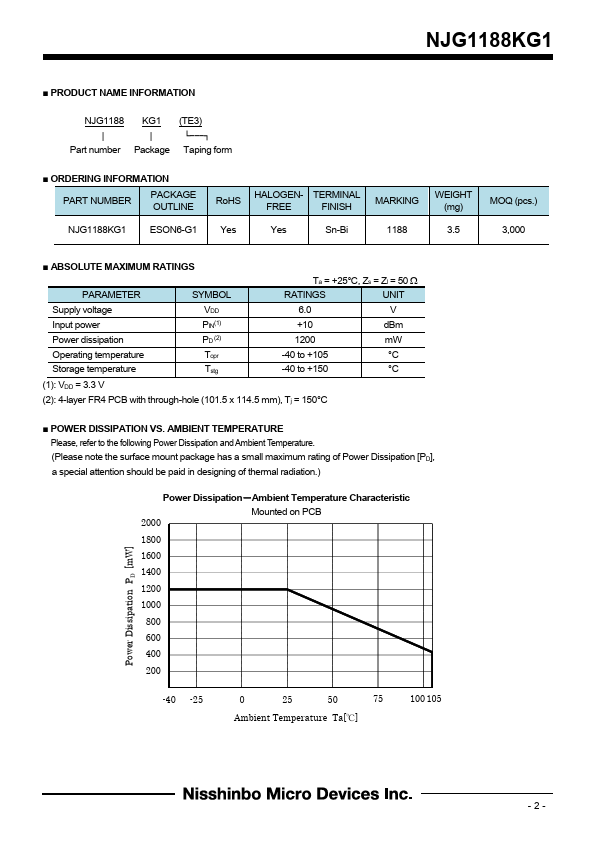

datasheet Preview Page 2

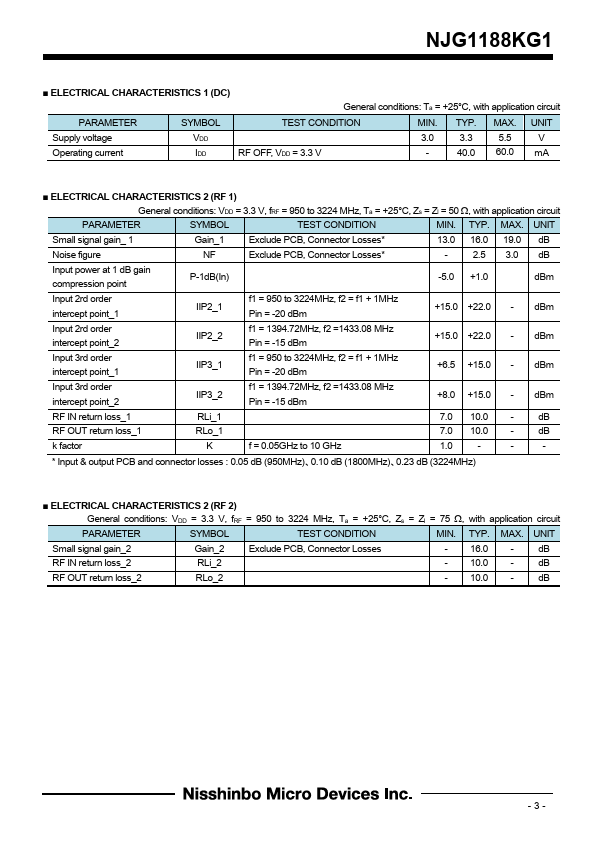

datasheet Preview Page 3

Datasheet Details

Part number	NJG1188KG1
Manufacturer	Nisshinbo
File Size	1.81 MB
Description	Broadband Low Noise Amplifier GaAs MMIC
Datasheet	NJG1188KG1-Nisshinbo.pdf

NJG1188KG1 Product details

Description

The NJG1188KG1 is a wide band low noise amplifier MMIC mainly intended BS/CS TV and others broadcasting system.

Features

S.
Wide frequency range 950 to 3224 MHz.
Supply Voltage 3.0 to 5.5V.
Operating current 40 mA typ. @VDD = 3.3 V.
High gain 16.0 dB typ. @ f = 950 to 3224 MHz, VDD= 3.3 V.
Low noise figurer 2.5 dB typ.
High P-1dB (IN) @ f = 950 to 3224 MHz, VDD = 3.3 V +1.0 dBm typ.
High Input IIP3 +15.0 dBm typ.
Small package size 1.6 mm x 1.6 mm x 0.397 mm typ.
RoHS compliant and Halogen Free, MSL1.
