NJG1809ME7 - HIGH POWER SP4T SWITCH GaAs MMIC

Nisshinbo

Datasheet Details

Part number	NJG1809ME7
Manufacturer	Nisshinbo
File Size	937.38 KB
Description	HIGH POWER SP4T SWITCH GaAs MMIC
Datasheet	NJG1809ME7-Nisshinbo.pdf

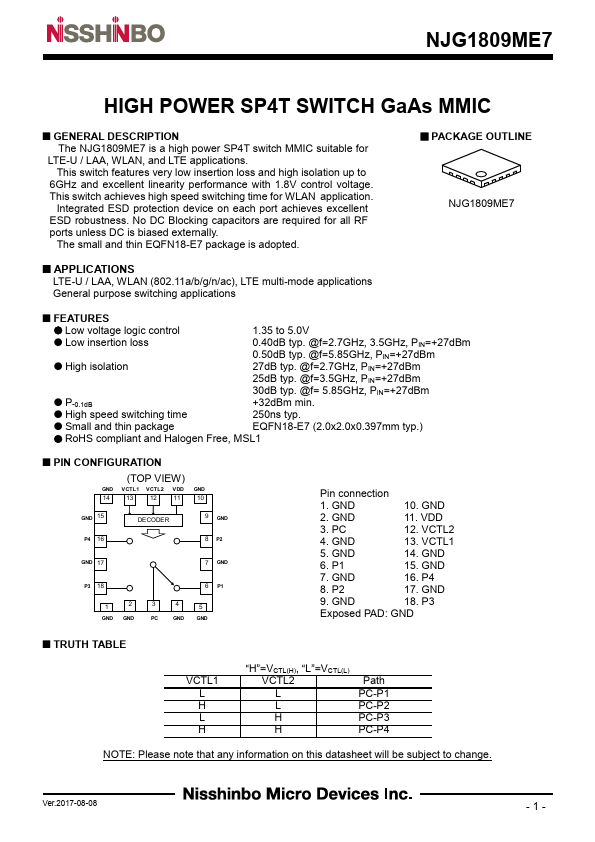

The NJG1809ME7 is a high power SP4T switch MMIC suitable for LTE-U / LAA, WLAN, and LTE applications.This switch

S.

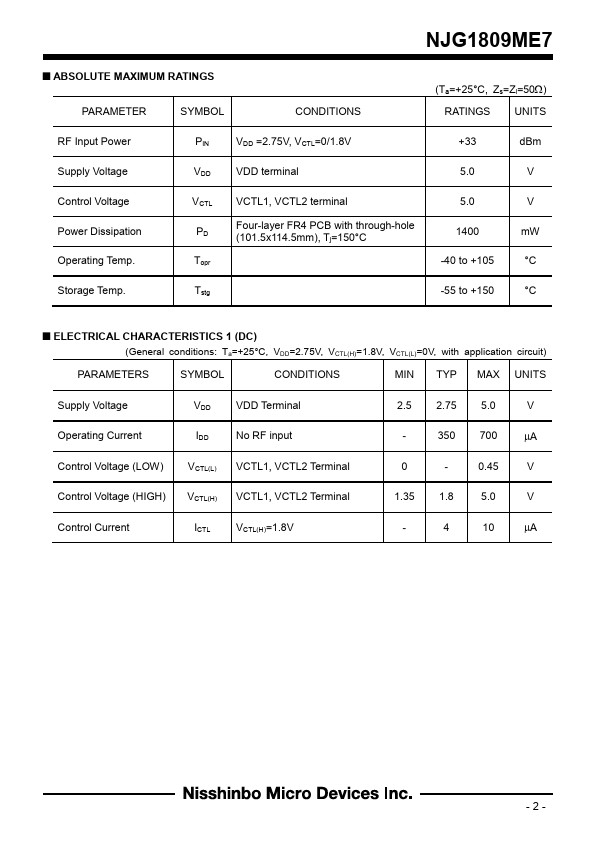

Low voltage logic control 1.35 to 5.0V.

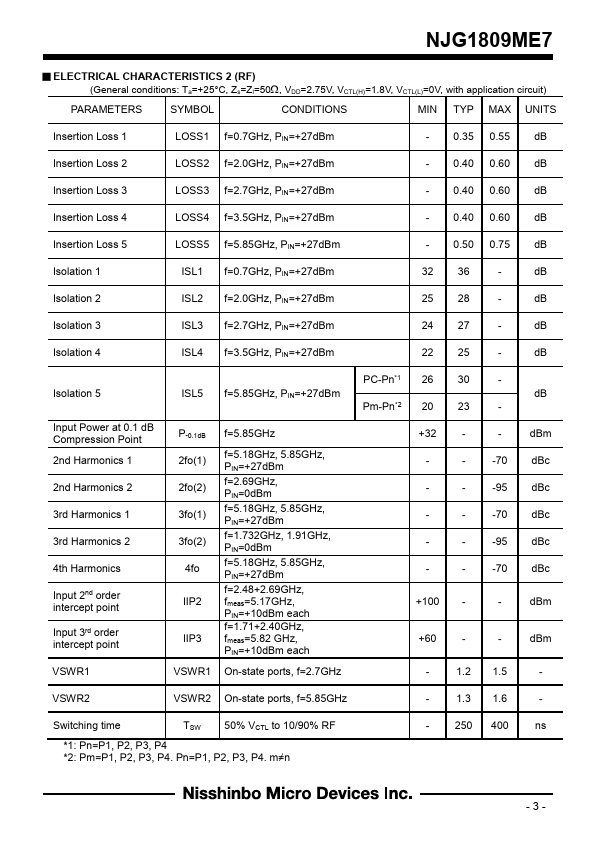

Low insertion loss 0.40dB typ. @f=2.7GHz, 3.5GHz, PIN=+27dBm 0.50dB typ. @f=5.85GHz, PIN=+27dBm.
High isolation 27dB typ. @f=2.7GHz, PIN=+27dBm 25dB typ. @f=3.5GHz, PIN=+27dBm 30dB typ. @f= 5.85GHz, PIN=+27dBm.
P-0.1dB +32dBm min.
High speed switching time 250ns typ.
Small and thin package EQFN18-E7 (2.0x2.0x0.397mm typ. ).
RoHS compliant and Halogen Free, MSL1.
PIN.
