1N914BWT - High Conductance Fast Switching Diode

Datasheet Summary

Description

SOD

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

Features

  • Fast Switching Diode (TRR < 4.0 ns).
  • Flat Lead, Surface Mount Device Under 0.70 mm Height.
  • Extremely Small Outline Plastic Package SOD523F.
  • Moisture Level Sensitivity 1.
  • Pb.
  • Free Version and RoHS Compliant.
  • Matte Tin (Sn) Lead Finish.
  • Green Mold Compound Table 1.

📥 Download Datasheet

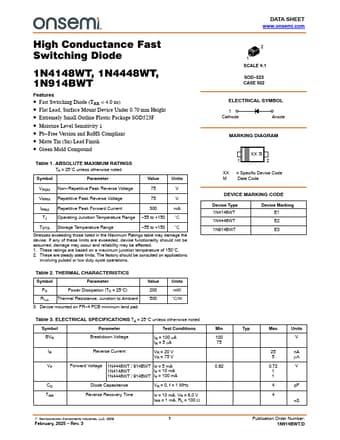

Datasheet preview – 1N914BWT

Datasheet Details

Part number 1N914BWT
Manufacturer ON Semiconductor
File Size 211.63 KB
Description High Conductance Fast Switching Diode
Datasheet download datasheet 1N914BWT Datasheet
Additional preview pages of the 1N914BWT datasheet.

📁 Similar Datasheet

  • 1N914BWT - High Conductance Fast Switching Diode (Fairchild Semiconductor)
  • 1N914BWT - 200mW SOD-523 SURFACE MOUNT DIODES (YS)
  • 1N914BW - 400mW High Speed SMD Switching Diode (Taiwan Semiconductor)
  • 1N914BW - SURFACE MOUNT SWITCHING DIODES (PACELEADER)
  • 1N914BWS - 200mW High Speed SMD Switching Diode (Taiwan Semiconductor)
  • 1N914B - Silicon Rectifier Diode (NTE)
  • 1N914B - SWITCHING RECTIFIERS (Digitron Semiconductors)
  • 1N914B - HIGH SPEED SWITCHING DIODES (EIC)
  • 1N914B - 500mW 100 Volt Silicon Epitaxial Diodes (MCC)
  • 1N914B - SIGNAL DIODE (WILLAS)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com High Conductance Fast Switching Diode 1N4148WT, 1N4448WT, 1N914BWT Features • Fast Switching Diode (TRR < 4.0 ns) • Flat Lead, Surface Mount Device Under 0.70 mm Height • Extremely Small Outline Plastic Package SOD523F • Moisture Level Sensitivity 1 • Pb−Free Version and RoHS Compliant • Matte Tin (Sn) Lead Finish • Green Mold Compound Table 1. ABSOLUTE MAXIMUM RATINGS TA = 25°C unless otherwise noted Symbol Parameter Value Units VRSM Non−Repetitive Peak Reverse Voltage 75 V VRRM Repetitive Peak Reverse Voltage 75 V IFRM Repetitive Peak Forward Current 300 mA TJ Operating Junction Temperature Range −55 to +150 °C TSTG Storage Temperature Range −55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device.
