Part number:
2SD1060
Manufacturer:
File Size:
128.88 KB
Description:
Bipolar transistor.
Ordering number : EN686K
2SD1060

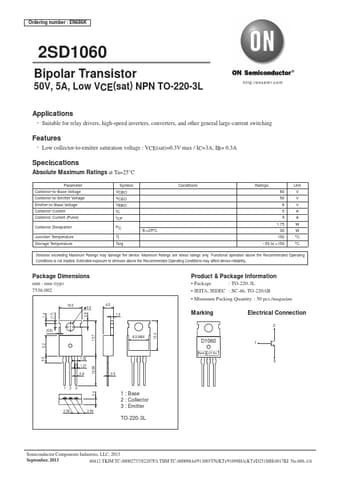

Bipolar Transistor
50V, 5A, Low VCE(sat) NPN TO-220-3L
http://onsemi.com
Applications
* Suitable for relay.
* Low collector-to-emitter saturation voltage : VCE(sat)=0.3V max / IC=3A, IB= 0.3A Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Ju
2SD1060
128.88 KB
Bipolar transistor.
Ordering number : EN686K
2SD1060
Bipolar Transistor
50V, 5A, Low VCE(sat) NPN TO-220-3L
http://onsemi.com
Applications
* Suitable for relay.
