2SK545 N-Channel JFET

2SK545 Description

N-Channel JFET 40 V, 55 to 95 mA, 0.10 ms, CP 2SK545 DATA SHEET www.onsemi.com SC *59 / CP3 CASE 318BJ .

2SK545 Features

* Small IGSS
* Small Ciss
* Ultrasmall Package permitting 2SK545
* applied Sets to be Compact
* This is a Pb

2SK545 Applications

* Impedance Converter Applications
* Infrared Sensor ABSOLUTE MAXIMUM RATINGS (at TA = 25°C) Parameter Symbol Ratings Unit Drain
* to
* Source Voltage VDSS 40 V Gate
* to
* Drain Voltage VGDS
* 40 V Gate Current IG 10 mA Drain Current

📥 Download Datasheet

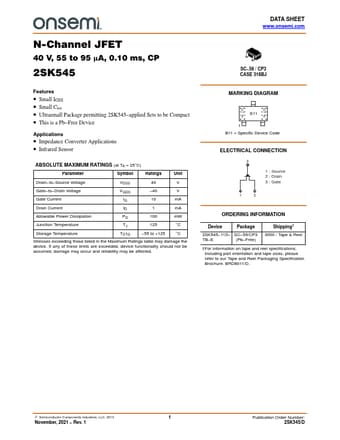

Preview of 2SK545 PDF
datasheet Preview Page 2 datasheet Preview Page 3
