ATP108 P-Channel Power MOSFET

ATP108 Description

Ordering number : ENA1604A ATP108 P-Channel Power MOSFET *40V, *70A, 10.4mΩ, Single ATPAK http://onsemi.com .

ATP108 Features

* Low ON-resistance
* Slim package
* Halogen free compliance
* Large current
* 4.5V drive
* Protection diode in Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) D

📥 Download Datasheet

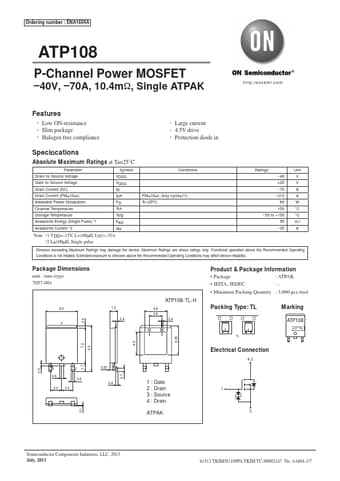

Preview of ATP108 PDF
datasheet Preview Page 2 datasheet Preview Page 3
