BSS138K - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Product Overview

ON Semiconductor

📥 Download Datasheet

BSS138K N-Channel Logic Level Enhancement Mode Field Effect Transistor by ON Semiconductor - Datasheet Preview — Datasheet preview – BSS138K

Datasheet Details

Part number	BSS138K
Manufacturer	ON Semiconductor
File Size	152.46 KB
Description	N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet	BSS138K Datasheet

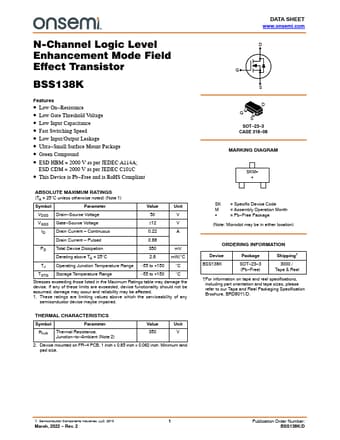

Additional preview pages of the BSS138K datasheet.

Product details

Features

Low On.
Resistance.
Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Ultra.
Small Surface Mount Package.
Green Compound.
ESD HBM = 2000 V as per JEDEC A114A; ESD CDM = 2000 V as per JEDEC C101C.
This Device is Pb.
Free and is RoHS Compliant.
