Description

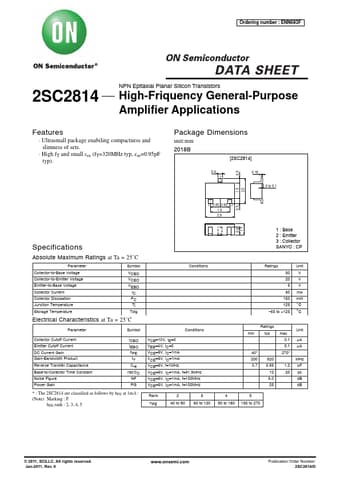

Ordering number : ENN693F 2SC2814 NPN Epitaxial Planar Silicon Transistors High-Friquency General-Purpose Amplifier Applications .

📥 Download Datasheet

Preview of C2814 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Ultrasmall package enabiling compactness and slimness of sets.
* High fT and small cre (fT=320MHz typ, cre=0.95pF typ). Package Dimensions unit:mm 2018B [2SC2814] 0.4 3 0.16 0 to 0.1 1.5 0.5 2.5 0.5 1 0.95 0.95 2 1.9 2.9 0.8 1.1 Specifications Absolute Maximum Ratings at Ta = 25˚C
