C2837 - 2SC2837

📥 Download Datasheet

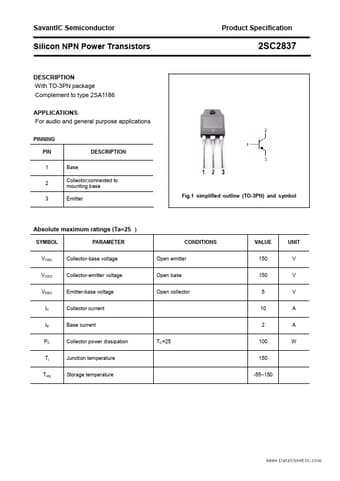

Preview of C2837 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number C2837
Manufacturer SavantIC
File Size 203.90 KB
Description 2SC2837
Datasheet download datasheet C2837-SavantIC.pdf

C2837 Product details

Description

With TO-3PN package Complement to type 2SA1186 APPLICATIONS For audio and general purpose applications PINNING PIN DESCRIPTION 1 Base 2 Collector;connected to mounting base 3 Emitter Product Specification 2SC2837 Fig.1 simplified outline (TO-3PN) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL PARAMETER VCBO VCEO VEBO IC IB PC Tj Tstg Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Ju
